LINK PlugIn ECUs MiniLink FOR BMW Mini Cooper S 2002-2006 MINIX

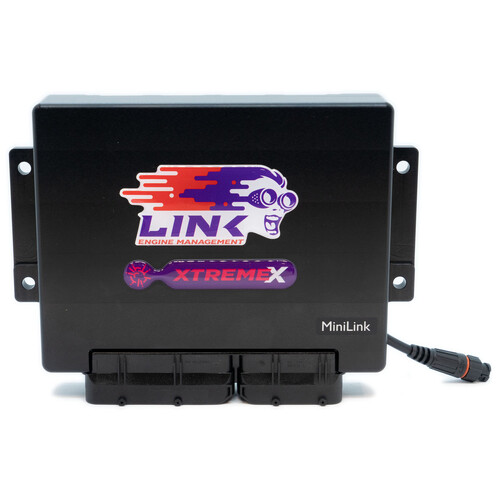

item:MINIX 209-4000 MiniLink for BMW Mini Cooper S 2002-2006 PlugIn ECUs for BMW

Easy to install. Affordable. Reliable.

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.

Our BMW Mini ECU comes in its own case which fits directly into the factory location.

Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

This ECU is designed for the R50-R53 Tritec 1.6 SC engine.

Please check your pinoutconnector matches the header in the listed photo before purchasing.

This ECU works for manual transmissions only.

An XS Loom and 4 Bar Map Sensor highly recommended (sold separately).

Most factory features are supported.

Check the features tab for I/O expansion options

Suitable applications:

R50 –R53 MINI Hatch with the 1.6l SC engine

Chronopack dash option not currently supported

G4X PlugIn Key Features (where applicable):

Up to 6D fuel and ignition mapping

Precision closed loop cam control (four cam, independent control)

Sequential fuel delivery

Digital triggering, all OEM patterns

OEM idle hardware supported

5D boost control with three switchable tables

Motorsport features - antilag, launch, flat shift

Continuous barometric correction (on board)

CAN port

QuickTune - automated fuel tuning

Individual cylinder correction

USB tuning cable included

Stats recording into on-board memory

Gear compensations for spark, boost and fuel

Real time selectable dual fuel, ignition and boost maps

Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical

Boost control referenced to gear, speed or throttle position

512 mega bytes data logging memory

Staged injection

Knock with "windowing"

The following expansion connector inputs/outputs are provided:

Aux1                 Auxiliary Output

DI8                 Digital Input

DI9                Digital Input

An Temp 3        Temperature sensor input

An Temp 4        Temperature sensor input

An Volt 10        Analog 0-5V input

An Volt 11        Analog 0-5V input

+5V Out        Low Current +5V Supply

GND                 Sensor Ground Only

*Please see the PC Link Help file for details regarding installing the Expansion Cable.
