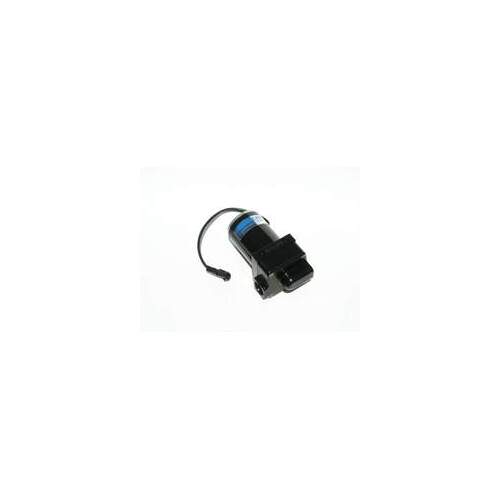

Meziere Remote Electric Water Pump, 20 GPM Inline, Single in-single out
Meziere Remote Electric Water Pump, 20 GPM Inline, Single in-single out
SKU: MEZ-WP136S

Meziere Remote Electric Water Pump, 20 GPM Inline, Single in-single out

Water Pump

$541.95

or 4 payments of $135.49 with Info



In Stock


Calculate Shipping


Australia wide rate - $25.00 (ETA: 3 days)


ITEM: Meziere Remote Electric Water Pump, 20 GPM Inline, Single in-single out

American made with quality far superior to any other performance aftermarket company, we build our water pumps with pride right here in the USA. Don't be mislead by inflated flow numbers and competitors' outlandish claims. We say what we mean and mean what we say. When an engine mounted pump is not available or space limits the ability to use one, the remote pumps are the answer. Meziere makes more remote pump configurations than any other manufacturer in the performance market. We make pumps that flow from 20 to 55+ gallons per minute. Our pumps can be configured to use almost any size line. All of our pumps are built for cooling systems and can operate properly in a harsh environment.

This water pump model features: WP136S

  • Remote / universal inline design
  • Suitable for street or drag strip use.
  • 2400+ hour life expectancy.
  • Show quality finish.
  • Light weight. Complete standard unit weighs only 5.2 pounds!
  • Stainless steel large diameter main shaft with high performance ceramic seal.
  • Single inlet port and single outlet port each threaded #12AN to accept a variety of fittings.
  • #12AN, #10AN, #08AN, 1" or ¾" slip hose inlet fittings available.
  • Inline design works well as a stand-alone or as a booster pump.
TECHNICAL SPECIFICATIONS
  • Finishing The System: The fittings need to be ordered according to the size of the radiator hoses.
  • Amperage draw: Under normal use the pump will draw 5-6 amps.
  • Overall Height Dimension: The standard pump is 7.25" high overall and about 3.5" square.
  • Pump Weight: This application weighs 5.2 lbs.
  • 16 volt systems: The 12 volt pump will work for limited use applications. The pump should not be powered while charging your 16 volt system.
Additional Notes: In our experience a 20 GPM pump can cool up to approximately 250HP continuous duty. The 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, Turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only.


SKU MEZ-WP136S
Brand MEZIERE
Shipping Weight 5.0000kg
Shipping Width 0.300m
Shipping Height 0.200m
Shipping Length 0.300m
