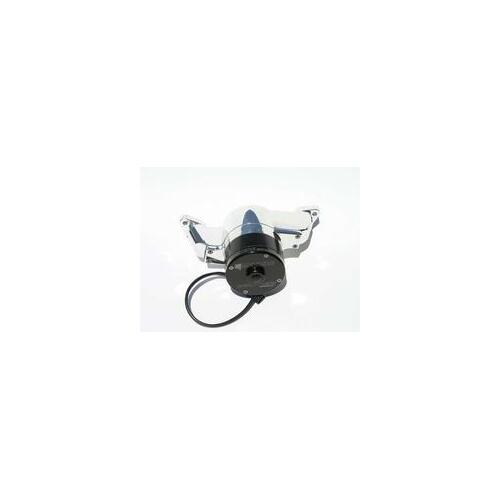

ITEM: Meziere Electric Water Pump for Ford, 35GPM Standard Motor - Polished

Meziere Electric Water Pump Suit Ford, 35GPM WP111

American made with quality far superior to any other performance aftermarket company, we build our water pumps with pride right here in the USA. Don't be mislead by inflated flow numbers and competitors' outlandish claims. We say what we mean and mean what we say.

This water pump model features:

Fits small block Ford Windsor, Cleveland and 5.0 engines pre 1994
Suitable for street or drag strip use – 2400+ hour life expectancy
Show quality finish
All stainless steel hardware included
Light weight. Complete standard small block Ford unit weighs only 5.6 pounds!
Stainless steel large diameter main shaft with high performance ceramic seal
1" NPT inlet adapters are available for #12AN, #16AN, #20AN, 1¼", 1½" or 1¾" slip hose

TECHNICAL SPECIFICATIONS

Belt Drives: If you are running a belt drive, this is most likely not the correct part number. This pump will not fit Yates, Danny B, Jesel, or Race Master belt drives. Please see model WP173.
Finishing The System: This pump is supplied complete with gaskets and hardware but without the inlet fitting. The fitting needs to be ordered according to the size of the lower radiator hose.
Finishing The System: A back plate may be necessary if this pump is being mounted to a stock timing cover. See Accessory WP112, WP113 and WP123
Amperage draw: Under normal use the pump will draw 6-7 amps.
Overall Height Dimension: The standard pump is 6.3" long from the mounting surface to the tip of the pump.
Heavy duty option adds .5"
Pump Weight: This application weighs 5.6 lbs.
16 volt systems: The 12 volt pump will work for limited use applications. The pump should not be powered while charging your 16 volt system.

Additional Notes: The standard 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, Turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does not accept heater or bypass hoses as a standard. These may be added at the factory for an additional cost. Please call for details. The small block Ford engine has gone through several design changes at the factory since its inception. There are two different 35 GPM pump models that may be right for your engine. For more information regarding small block ford applications and how to tell which pump is correct for you, please see our SB Ford addendum sheet.
