MANTIC CLUTCH 4THD Clutch Kit 4T96NHD
4T96NHD
Description

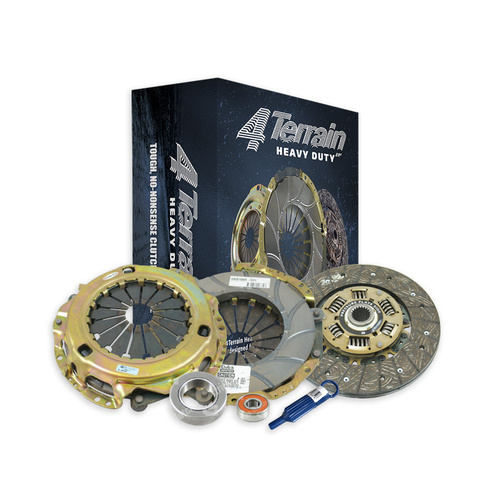

Item: MANTIC CLUTCH 4THD Clutch Kit 4T96NHD
Product Description
Designed and manufactured to replace the clutch system installed as Original Equipment, a 4Terrain Heavy Duty replacement clutch kit offers a significant torque capacity increase.
Each component has been thoroughly tested and developed for a specific application.
This range provides a Quality Assured replacement part that will meet or exceed the requirements of the original unit. After 65 years of experience in developing and manufacturing clutch kits for OEM and Aftermarket use, Mantic Clutch a division of Clutch Industries (CI) is the trusted source for a complete range of Clutch Kits suited to your vehicle.
PATENTED 4TERRAIN OFF ROAD COVER ASSEMBLY
4x4 systems need a higher torque capacity while retaining good pedal feel with fine modulation control. These characteristics inevitably increase heat which reduces service life. So the ideal 4x4 clutch system must also have improved heat dissipation. 4Terrain cover assemblies are in themselves high clamp load covers providing increased clamping force as compared to standard product. Also featuring the ER2 grooved cover which increase torque capacity while also increase heat dissipation.SPHEROIDAL GRAPHITE CASTINGS
Approximately 300% stronger than a standard casting this material (sometimes referred to as an Anti Burst casting) not only increases strength by up to 3 times, it also improves heat dispersion.BALANCED COVERS
To insure that the clutch system performs at maximum efficiency and that no unwanted vibration is generated as the cover spins, all 4Terrain cover assemblies undergo a 2 stage balancing process.HEAVY DUTY CLUTCH PLATE
4Terrain Heavy Duty Clutch Kits feature an increase in organic friction material. These plates offer a 25% increase in friction material thickness compared with other clutch systems.
Features
Warranty | 4Terrain Heavy Duty and 4Terrain Ultimate Clutch Kits come with a 36 month warranty, or 50,000km's, whichever occurs first, from date of purchase. For full warranty terms and conditions please refer to the FAQ section at manticclutch.com |
---|---|
Feature 1 | Patented ER2 High Torque SGI Cover Assembly |
Feature 2 | Heavy Duty Clutch Plate |
Feature 3 | 3 Year / 50,000KM Warranty |
Weight (KG) | 10.00 |
---|---|
Package Length (CM) | 33.5 |
Package Height (CM) | 11 |
Package Width (CM) | 33 |
Flywheel Specs | |
Tech Comments | |
Clutch Plate | 235 x 21T x 29.0 |
Torque Capacity | Peak: 468Nm, Rated: 374Nm |
Tech Documents | Understanding Clutch Systems Size: (6.64 MB) |
Specifications
SKU | MANTIC-4T96NHD |
Brand | MANTIC CLUTCH |
Shipping Weight | 20.0000kg |
Shipping Width | 0.600m |
Shipping Height | 0.250m |
Shipping Length | 0.350m |
