Designed and manufactured to replace the clutch system installed as Original Equipment, a 4Terrain Ultimate Twin Disc Series clutch kit offers the ultimate torque capacity increase.

Each component has been thoroughly tested and developed for a specific application.

When you have the ultimate 4X4 you need the ultimate clutch kit and 4Terrain Ultimate now has the Twin Disc Series. Twin clutch discs double the friction surface area and matched with 4T's patented technology nothing holds more torque while retaining drivability. This range provides a Quality Assured replacement part that will meet or exceed the requirements of the original unit. After 65 years of experience in developing and manufacturing clutch kits for OEM and Aftermarket use, Mantic Clutch a division of Clutch Industries (CI) is the trusted source for a complete range of Clutch Kits suited to your vehicle.

PATENTED 4TERRAIN GROOVED INTERMEDIATE PLATE

4x4 systems need a higher torque capacity while retaining good pedal feel with fine modulation control. These characteristics inevitably increase heat which reduces service life. So the ideal 4x4 clutch system must also have improved heat dissipation. 4Terrain Ultmate Twin Disc Series feature an ER2 grooved intermediate plate which increases torque capacity while also increasing heat dissipation.

SPHEROIDAL GRAPHITE CASTINGS

Approximately 300% stronger than a standard casting this material (sometimes referred to as an Anti Burst casting) not only increases strength by up to 3 times, it also improves heat dispersion.

BALANCED COVERS

To insure that the clutch system performs at maximum efficiency and that no unwanted vibration is generated as the cover spins, all 4Terrain cover assemblies undergo a 2 stage balancing process.

4TERRAIN DUAL FRICTION CLUTCH PLATE

4Terrain Ultimate Clutch Kits feature twin dual friction clutch plate. Organic material on the flywheel side is replaced with Aramid, the same material used in bulletproof vests, for improved fade resistance and increased torque capacity due to a higher coefficient of friction. 4Terrain Ultimate plates are the ultimate for your 4x4.

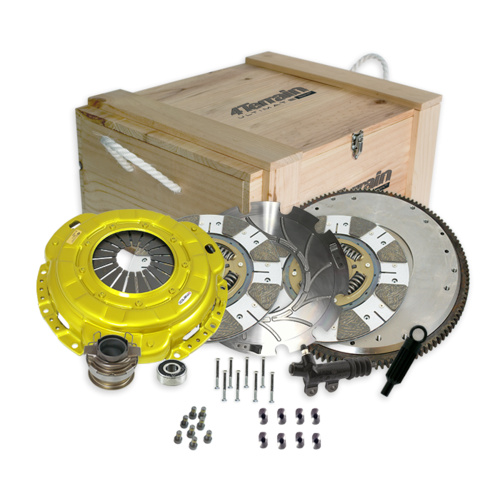

/p>The 4Terrain Twin Disc Kit Features:

• Unbreakable SG Iron Pressure Plate (275mm) with increased clamp load for high torque capacity.


• Twin Dual Friction Aramid/Organic Discs for the perfect combination between superior torque capacity and uncompromised driveability.


• ER² Grooved SG Iron Intermediate Pate for increase torque capacity and better heat dissipation *non-grooved for SSC version


• Steel billet flywheel with bolts and accessories; everything you need to do the job


• Modified Slave Cylinder; direct fit no modifications needed


• Release bearing tested to 1,500,00 cycles at 1800C; quality guaranteed
