SKU: MANTIC-4TTSRF2538N-SSC

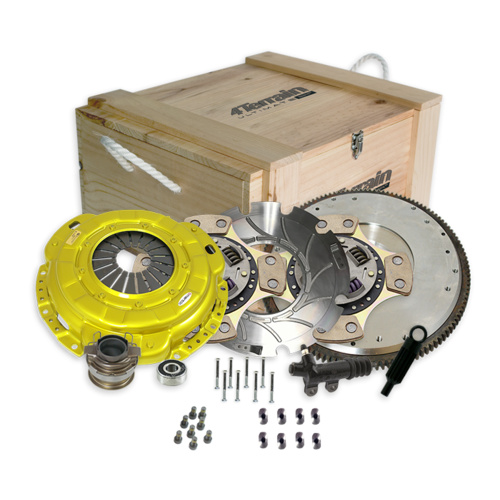

MANTIC CLUTCH 4T SSC Twin Disc Clutch Kit 4TTSRF2538N-SSC

4TTSRF2538N-SSC

$3,931.19


In Stock


Calculate Shipping



Australia wide rate - $40.00

Description

Item: MANTIC CLUTCH 4T SSC Twin Disc Clutch Kit 4TTSRF2538N-SSC

Product Description

p>Designed and manufactured to replace the clutch system installed as Original Equipment, a 4Terrain Ultimate Twin Disc Series clutch kit offers the ultimate torque capacity increase.

Each component has been thoroughly tested and developed for a specific application.

When you have the ultimate 4X4 you need the ultimate clutch kit and 4Terrain Ultimate now has the Twin Disc Series. The cerametallic Twin clutch discs double the friction surface area and matched with 4T's patented technology nothing holds more torque. This range provides a Quality Assured replacement part that will meet or exceed the requirements of the original unit. After 65 years of experience in developing and manufacturing clutch kits for OEM and Aftermarket use, Mantic Clutch a division of Clutch Industries (CI) is the trusted source for a complete range of Clutch Kits suited to your vehicle.

SPHEROIDAL GRAPHITE CASTINGS

Approximately 300% stronger than a standard casting this material (sometimes referred to as an Anti Burst casting) not only increases strength by up to 3 times, it also improves heat dispersion.

BALANCED COVERS

To insure that the clutch system performs at maximum efficiency and that no unwanted vibration is generated as the cover spins, all 4Terrain cover assemblies undergo a 2 stage balancing process.

CERAMETALLIC FRICTION MATERIAL CLUTCH PLATE - NON CUSHIONED

The Torque Capacity of a Clutch Plate can be increased by using cerametallic friction material featuring a higher coefficient of friction. However, cerametallic material reduces pedal feel and results in more sudden clutch engagement, reducing street driveability. The 4Terrain Twin Disc SSC Clutch Kits feature cerametallic friction material on both sides of the clutch plate, and no segment cushioning. This results in a strong torque capacity increase and more sudden engagement compared with organic disc materials. This type of configuration is more suitable to rally and motor sport driving; and less so for street driving.

/p>The 4Terrain Twin Disc Kit Features:



  • Unbreakable SG Iron Pressure Plate (275mm) with increased clamp load for high torque capacity.

  • Twin Sprung Cerametallic Discs for massive torque capacity increase with a more aggressive clutch feel.

  • ER2 Grooved SG Iron Intermediate Pate for increase torque capacity and better heat dissipation *non-grooved for SSC version

  • Steel billet flywheel with bolts and accessories; everything you need to do the job

  • Modified Slave Cylinder; direct fit no modifications needed

  • Release bearing tested to 1,500,00 cycles at 1800C; quality guaranteed

Features

Information
Warranty

4Terrain Heavy Duty and 4Terrain Ultimate Clutch Kits come with a 36 month warranty, or 50,000km's, whichever occurs first, from date of purchase.

For full warranty terms and conditions please refer to the FAQ section at manticclutch.com

Feature 1 SG Iron Burst Proof Castings
Feature 2 Twin Sprung Cerametallic Clutch Discs
Feature 3 3 Year / 50,000KM Warranty
Information
Weight (KG) 40.00
Package Length (CM) 55
Package Height (CM) 40
Package Width (CM) 55
Flywheel Specs
Tech Comments
Clutch Plate 14T x 32.4
Torque Capacity Peak: 2300Nm, Rated: 1611Nm
Tech Documents Understanding Clutch Systems    Size: (6.64 MB)

Specifications

SKU MANTIC-4TTSRF2538N-SSC
Brand MANTIC CLUTCH
Shipping Weight 20.0000kg
Shipping Width 0.600m
Shipping Height 0.250m
Shipping Length 0.350m
