M1 - THE NEXT GENERATION

Advances in technology have increased the demands on a vehicle's components especially the ECU. This demand has reached the point where a single firmware to ECU configuration cannot meet the market's ECU requirements (even with increased capacity and processor speed).

The M1 series was conceived by MoTeC to overcome this one-to-one firmware to ECU limitation by designing a system where operational efficiency advanced features and flexibility are its primary objectives.
At its core M1 provides the ability to develop a suite of flexible and tailored solutions (packages) making it ideal for any application (however complex) and category management.
Key advantages to the new M1 solutions are:

Latest generation high performance processor
Large logging memory, fast Ethernet downloads
Compact and lightweight in robust magnesium enclosure
Supports port injection applications
Supports advanced logging features including Pro Analysis (i2 Pro)
Advanced security system, incorporating an anti-tampering microprocessor
Access log-in levels for multiple users

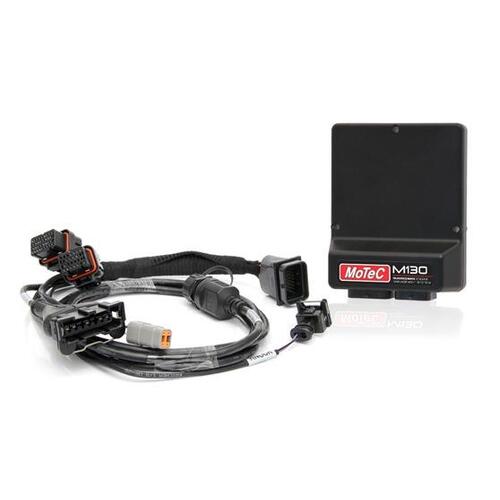

M130 Features:
Injector
- 8 Peak & Hold Injector Outputs

Ignition
- 8 Low Side Ingnition Outputs

Auxiliary Outputs
- 2 Low Side Outputs
- 6 Half Bridge Outputs

Inputs
- 7 Universal Digital Inputs
- 8 Analogue Voltage Inputs
- 4 Analogue Temperature Inputs
- 2 Knock Inputs

Data
- 1 CANBus

Logging Memory
- 150MB
