M.H.I Bolt-On for honda civic FK7/FC1/FC3 BIG TURBOCHARGER KIT

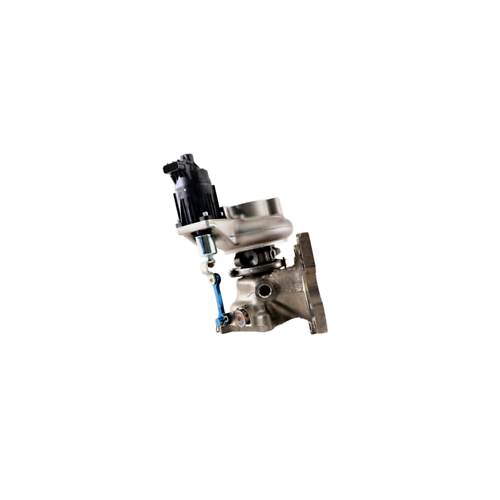

This Genuine Mitsubishi TD03 turbocharger (Honda OEM is a Mitsubishi TD025) was developed as a direct drop-in, bolt-on turbo upgrade for 2016+ Civic, 2017+ Civic Si and 2017+ CRV. It uses a billet compressor wheel for quicker spool, and a 3mm larger turbine wheel with 2 less blades for a 30% increase in flow capacity.

The MHI TD03 turbo is supported by  for the easiest drop in, bolt on power gains possible, and because it’s made by Mitsubishi Turbocharger, you retain 100% stock reliability and durability. No modifications necessary for installation. The dyno graph below is a 100% stock Civic Si running on pump gas. The only modification being this turbo, everything else is O.E.M. What you can expect is a turbo that spools like stock, but with a 44 WHP gain over stock (91 octane) and more with ethanol / supporting modifications.

Ethanol dyno graph and base map coming soon.

CARB approved Hondata Calibration also available:

California emissions compliant (CARB EO D-742-1), which allows this product to be used on street vehicles within the USA.

MHI Performance turbochargers are a high-quality result of an extremely precise production in the motorsports department of the Japanese turbocharger manufacturer Mitsubishi.

In addition, all are equipped with double hydrodynamic bearings. The exhaust wheels made of Inconel, in perfect symbiosis with compressor wheels from the latest development, convince with an amazingly early response and torque development even at low rev ranges and with low boost pressure. This means better drivability in the lower and medium speed ranges, thanks to the best power delivery in the feared turbo lag.

Power range: Up to 260HP+ with stock fuel system, more with proper supporting modifications and tuning
Flange to manifold: Honda Civic SI and any L15B Civic / CRV models
Flange to downpipe: Honda Civic SI and any L15B Civic / CRV models
Wastegate: Internal, with actuator

Compressor wheel inlet: 39,40mm
Compressor wheel outlet: 49,00mm
Turbine wheel exducer: 36,70mm
Turbine wheel inducer: 40,00mm
