LINK PlugIn ECUs GTTLink FOR Nissan GTT R34 RB25DET NEO NGTTX

Easy to install. Affordable. Reliable.
G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.

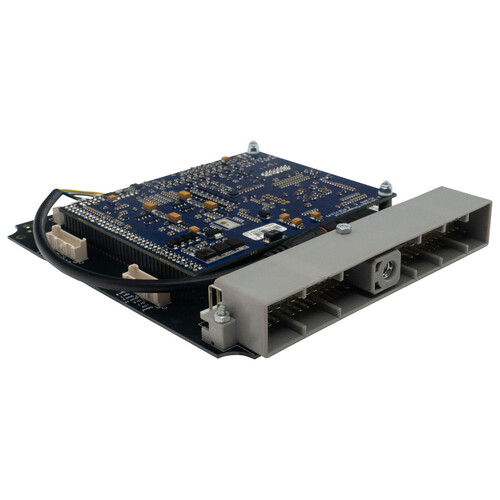

This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

The NGTTX is Designed to suit the grey plug RB (typically neo) engine.

• Please check your connector matches the header in the listed photo before purchasing.
• This ECU works for manual transmissions only.
• Most factory features are supported.
• Note: This ECU does not currently output the 4WD signal required for proper 4wd operation in 4WD Stageas and Skylines.
• Note: Models fitted with factory traction control - TCS will no longer function, the TCS and slip lamps will be illuminated.
• Check the features tab for I/O expansion options.
• This ECU will need a modification before E-Throttle is usable.

Suitable applications:

RB20DE NEO, RB25DE NEO and RB25DET NEO in R34 Skylines

RB20DE NEO, RB25DE NEO and RB25DET NEO in C35 Laurels

RB20DE NEO, RB25DE NEO and RB25DET NEO in Nissan Stageas

- Plus, non neo motors in Stageas

G4X PlugIn Key Features (where applicable):
Up to 6D fuel and ignition mapping
Precision closed loop cam control (four cam, independent control)
Sequential fuel delivery
Digital triggering, all OEM patterns
OEM idle hardware supported
5D boost control with three switchable tables
Motorsport features - antilag, launch, flat shift
Continuous barometric correction (on board)
CAN port
QuickTune - automated fuel tuning
Individual cylinder correction
USB tuning cable included
Stats recording into on-board memory
Gear compensations for spark, boost and fuel
Real time selectable dual fuel, ignition and boost maps
Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
Boost control referenced to gear, speed or throttle position
512 mega bytes data logging memory
Staged injection
Knock with "windowing"


I/O Expansion Options:
The following expansion connector inputs/outputs are provided:
Expansion connector 1
SGnd                Sensor Ground Only
+5V Out        Low Current +5V Supply
DI 7                Digital Input
DI 8                Digital Input
An Volt 10        Analog 0-5V input
An Volt 9        Analog 0-5V input
Ign 7                Ignition 7 Auxiliary Output
Ign 8                Ignition 8 Auxiliary Output

Expansion connector 2
SGnd                Sensor Ground Only
+5V Out        Low Current +5V Supply
DI 5                Digital Input
DI 6                Digital Input
An Volt 5        Analog 0-5V input
An Volt 6        Analog 0-5V input
An Temp 2        Temperature sensor input
An Temp 3        Temperature sensor input

Pin 108 – OBD1 wire now used for IAT on Temp 4.
