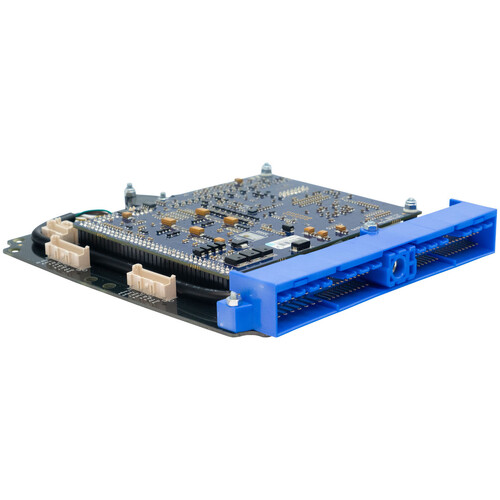

item:LINK N300X 213-4000 300ZLink for Nissan 300ZX Z32 PlugIn ECUs for Nissan

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.

This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

The N300X ECU is Designed to suit the VG30DET engine.

 Please check your connector matches the header in the listed photo before purchasing.

This ECU works for manual transmissions only.

Includes an onboard 4 bar or 7 bar MAP sensor.

Most factory features are supported.

It is highly recommended to fit an IAT sensor with this model.

Check the features tab for I/O expansion options.

This ECU will need a modification before E-Throttle is usable.

Suitable applications:

Z32 300ZX VG30DE

Z32 300ZX VG30DETT

G4X PlugIn Key Features (where applicable):

Up to 6D fuel and ignition mapping

Precision closed loop cam control (four cam, independent control)

Sequential fuel delivery

Digital triggering, all OEM patterns

OEM idle hardware supported

5D boost control with three switchable tables

Motorsport features - antilag, launch, flat shift

Continuous barometric correction (on board)

CAN port

QuickTune - automated fuel tuning

Individual cylinder correction

USB tuning cable included

Stats recording into on-board memory

Gear compensations for spark, boost and fuel

Real time selectable dual fuel, ignition and boost maps

Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical

Boost control referenced to gear, speed or throttle position

512 mega bytes data logging memory

Staged injection

Knock with "windowing"

I/O Expansion Options:

The following expansion connector inputs/outputs are provided:

Expansion connector 1

GND                Sensor Ground Only

+5V Out        Low Current +5V Supply

DI 5                Digital Input

DI 6                Digital Input

Volt 8                Analog Volt Input

Volt 7                Analog Volt Input

Temp 3                Analog Temp Input

Temp 4                Analog Temp Input

Expansion Connector 2

Gnd                Sensor Ground Only

+5V Out        Low Current +5V Supply

Ign 7                Ignition 7 Auxiliary Output

Ign 8                Ignition 8 Auxiliary Output

DI 7                Digital Input

DI 8                Digital Input

An Volt 9        Analog 0-5V input

An Volt 10        Analog 0-5V input
