SKU: link-124-1000
LINK WireIn ECUs Thunder 8x p&h fuel & ign; 2x knock; 1x digital wideband & e-throttle; traction & cruise G4+T

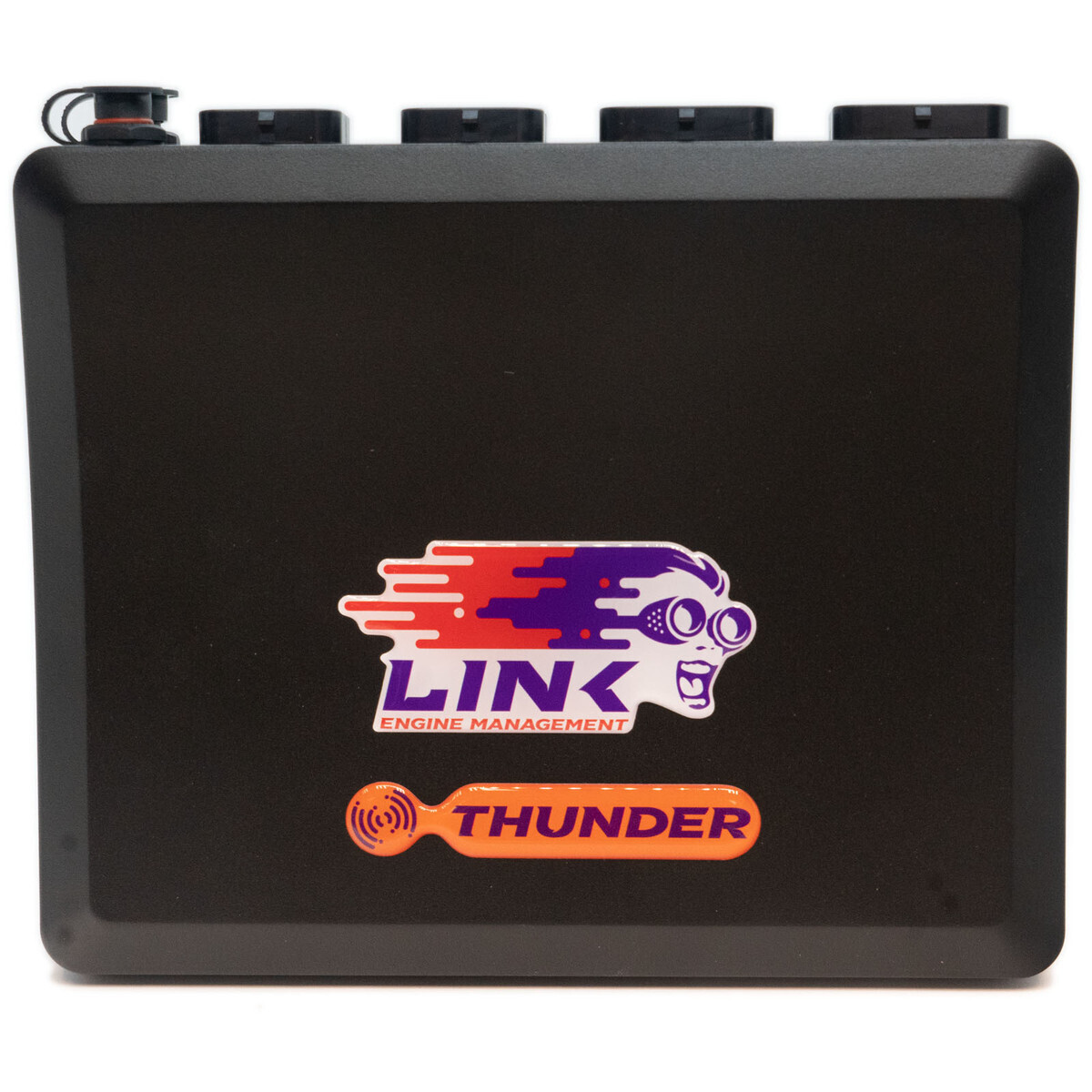

Link 124-1000 Thunder Wire-In ECU (Peak & Hold)
$3,206.50
In Stock
Description
item: Link 124-1000 Thunder Wire-In ECU (Peak & Hold)
Description
The Thunder is designed for high end applications requiring maximum performance, flexibility and tuning control. The Thunder has more inputs, more outputs and more features than any other Link ECU. The Thunder has all the features found on other LinkECU's plus onboard 3 axis accelerometer, two EGT thermocouple inputs, two Onboard Lambda Controllers and 2 x E-throttle Controllers. If it is Direct Injection you are after, consider the Force GDI.
Specifications
- Inputs
- 16 x Digital inputs (6 are high speed differential type for ABS sensors etc)
- 4 x Temperature inputs
- 16 x Analog inputs
- 2 x Trigger inputs
- 2 x Knock inputs
- 2 x LSU 4.9 Wideband lambda sensor inputs
- 2 x K Type Thermocouple inputs
- 8 x Peak and Hold injection drives
- 8 x Ignition drivers
- 18 x Auxiliary outputs^
- +5V Sensor power supply
- +8V Sensor power supply
- ^unused fuel and ignition drives can be used as additional Aux outputs
- 2 x CAN bus
- 1x Serial (RS232) connection
- 1x USB tuning connection
compatibility
- Universal
Specifications
SKU | link-124-1000 |
Brand | LINKWIRE-IN ECU |
Shipping Weight | 10.0000kg |
Shipping Width | 0.450m |
Shipping Height | 0.300m |
Shipping Length | 0.400m |
