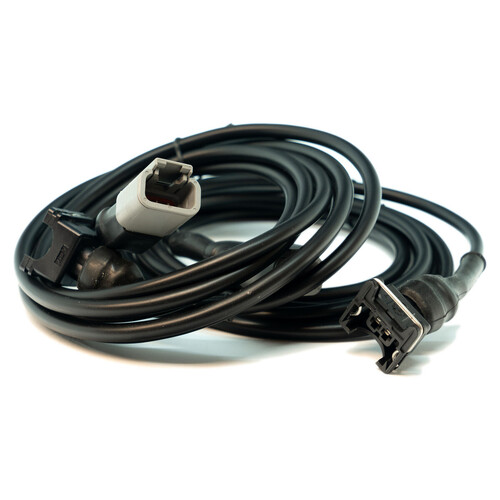

Link 105-1000 G4+ KnockBlock (2x Sensors, CNC Enclosure w/Flying Leads)

LINK Tuning Tools KnockBlock G4+, includes two knock sensors, rechargable, ruggard CNC enclosure with flying leads KNB

Calculate Shipping

Australia wide rate - $30.00 (ETA: 3 days)

item: Link 105-1000 G4+ KnockBlock (2x Sensors, CNC Enclosure w/Flying Leads)

Description

What accessories are required to maximise your Link ECU? We sell a variety of sensors and extras which complement aftermarket ECUs. The G4+ KnockBlock is an essential tool for tuning and can aid in the early detection of incorrect ignition timing, lean air/fuel mixtures and mechanical issues. It is used it with ear buds, headphones or noise cancelling ear muffs and features special filtering to allow you to listen in and detect knock early.

Specifications

Install the knock sensor/s in a suitable location on the engine (typically on a solid mounting point on the block near the cylinder head)
If only using one sensor, leave the unused sensor cable disconnected
Turn the volume control clockwise until it clicks. The LED indicator will turn blue when the KnockBlock is operating
Turn the volume to the minimum setting (most anti-clockwise)
Connect headphones to the 3.5mm audio jack
Run the engine and carefully increase the volume (clockwise) until engine mechanical noise can be heard. Adjust to a comfortable listening volume
Turn off the KnockBlock by turning the volume control anti-clockwise until it clicks
Connect the USB charging cable to the KnockBlock’s Mini USB connector. Can be charged from any standard USB charger PC, laptop, car or cell phone charger (2.1A at 5V max)
The LED indicator will show red while charging. When the indicator turns off the battery is fully charged
Charge the G4+ KnockBlock after use and before storage
