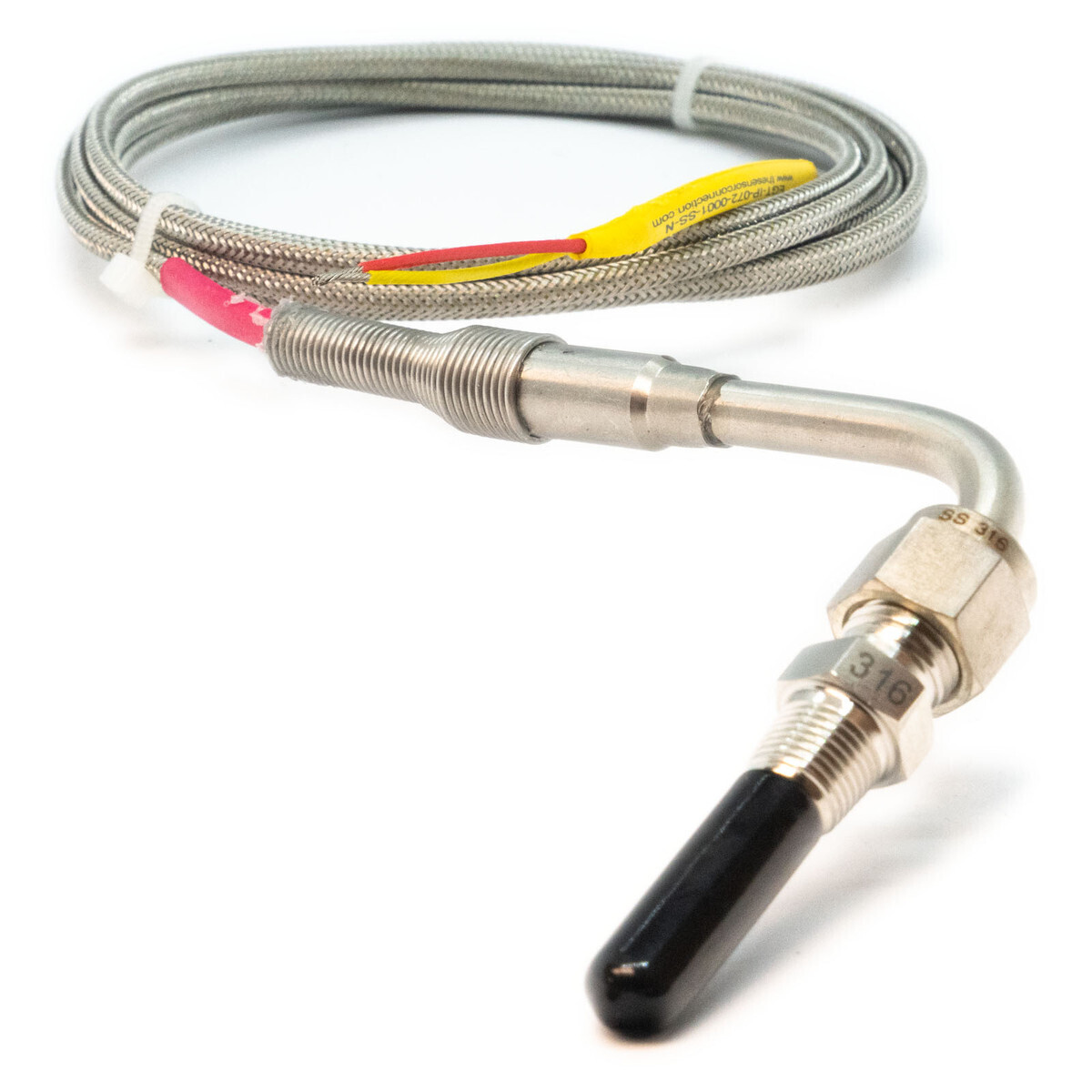

Link 101-0146 Exhaust Gas Temperature Probe
item: Link 101-0146 Exhaust Gas Temperature Probe
Description
NOTE: When using this with an ECU other than the Thunder, you will need to use an amplifier. What accessories are required to maximise your Link ECU? We sell a variety of sensors and extras which complement aftermarket ECUs. Extreme Duty Fast Response EGT Temperature Probe.
Specifications
- Thermocouple type: K
- Range: -148 to 2372°F (-100 to 1300°C)
- Accuracy: +/-0.4% of reading or about +/- 1.1°C (Special Limits of Error)
- Probe diameter: 1/4 inch (0.250 inch) (6.35 mm)
- Sensing Junction: Exposed, Ungrounded
- Response Time*: 150 mS
- *Time Constant: Defined as the time required to reach 63.2% of an instantaneous temperature change
- Five time constants are required to approach 100% of the step change value
- Outer Sheath Material: Inconel, melting point 2550°F (1400°C)
- Cable: Stainless steel overbraiding over Teflon™ insulated, stranded wires, 20 gauge
- Compression Fitting: 316 stainless steel, adjustable, 1/8 inch –27 NPT male thread
compatibility
- Universal
