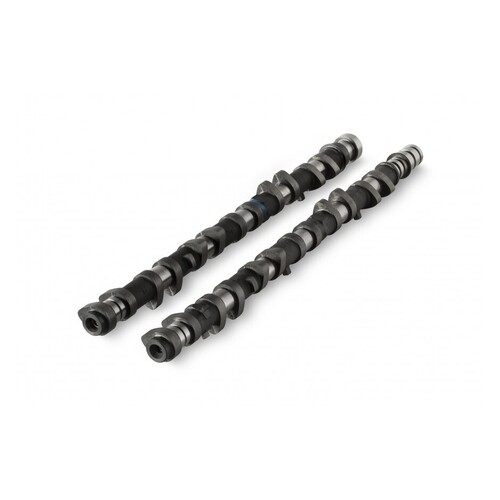

Kelford Cams V229-C Camshaft Set for (1JZ VVTi) - 264/272 Deg
KELFORD CAMS
Description
item: Kelford Cams V229-C Camshaft Set for (1JZ VVTi) - 264/272 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 264/272 Degrees advertised duration. 9.65mm/9.65mm lift
- 264/272 Degree street / strip or track day cams for good response and midrange power. Suits up to 30lb boost and 8000 RPM with our recommended valve spring. Requires valve spring upgrade KVS02
Specifications
Engine Make: | Engine Model: | Part Number: | |||||
TOYOTA | 1JZ VVTi | V229-C | |||||
Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
Cam Lift: | Intake: | 9.90mm | Exhaust: | 9.90mm | |||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
Nett Valve Lift: | Intake: | 9.65mm | Exhaust: | 9.65mm | |||
Advertised Duration @ | 0.10mm | Intake: | 264 | Exhaust: | 272 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 228 | Exhaust: | 232 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 4 ATDC | EVO: | 52 BBDC | ||
IVC: | 34 ABDC | EVC: | 0 TDC | ||||
Suggested Centre Lines: | Intake: | VARI | Exhaust: | 116 | |||
VALVE | Lift @ TDC | Intake: | 0.68mm | Exhaust: | 0.94 |
compatibility
- 1995-On Toyota Chaser/Soarer/Supra
