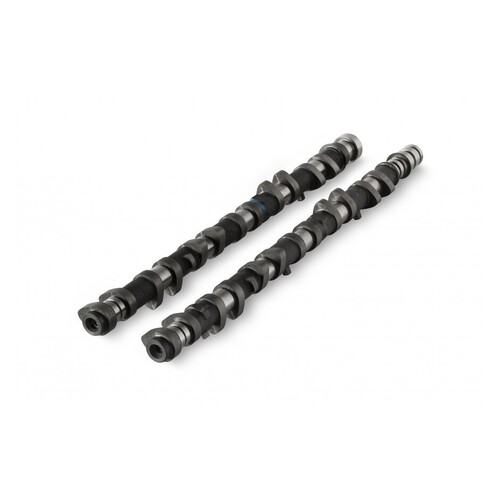

Kelford Cams V229-B Camshaft Set for (1JZ VVTi) - 260/260 Deg
Kelford Cams V229-B Camshaft Set for (1JZ VVTi) - 260/260 Deg
SKU: kelford-V229-B

Kelford Cams V229-B Camshaft Set for (1JZ VVTi) - 260/260 Deg

KELFORD CAMS

$1,223.41

or 4 payments of $305.85 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams V229-B Camshaft Set for (1JZ VVTi) - 260/260 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 260/260 Degrees advertised duration. 9.35mm/9.35mm lift
  • Street performance cams to suit small turbo upgrade. High lift and low duration for great low end, and midrange power. Require KVS93 valve springs.

Specifications

Engine Make: Engine Model: Part Number:
TOYOTA 1JZ VVTi V229-B
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 9.60mm Exhaust: 9.60mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.35mm Exhaust: 9.35mm
Advertised Duration @ 0.10mm Intake: 260 Exhaust: 260
Duration @ 1.00mm VALVE LIFT Intake: 222 Exhaust: 222
Timing @ 1.00mm VALVE LIFT IVO: 4 ATDC EVO: 50 BBDC
    IVC: 34 ABDC EVC: 8 BTDC
Suggested Centre Lines:   Intake: VARI Exhaust: 116
VALVE Lift @ TDC Intake: 0.68mm Exhaust: 0.26mm



compatibility

  • 1995-On Toyota Chaser/Soarer/Supra

SKU kelford-V229-B
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
