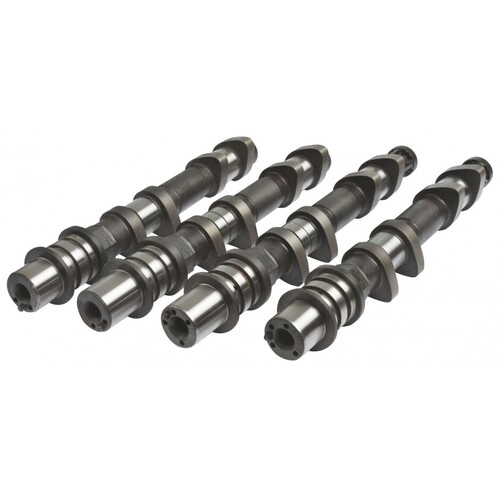

Kelford Cams V2-199-A Camshaft Set for (EJ20 w/AVCS V6+) - 256, 252/260 Deg
KELFORD CAMS
Description
item: Kelford Cams V2-199-A Camshaft Set for (EJ20 w/AVCS V6+) - 256, 252/260 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 256&252/260 Degrees advertised duration. 9.55mm&9.55mm/9.50mm lift
- High torque camshafts to suit near stock engines. Ideal in 36 mm restrictor classes.
Specifications
| Engine Make: | Engine Model: | Part Number: | |||||
| SUBARU | EJ20 WRX Version 6-10 AVCS | V2-199-A | |||||
| Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 9.75mm | Exhaust: | 9.75mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 9.55mm | Exhaust: | 9.50mm | |||
| Advertised Duration @ | 0.25mm | Intake: | 256 | Exhaust: | 260 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 218 | Exhaust: | 222 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 21 ATDC | EVO: | 44 BBDC | ||
| IVC: | 59 ABDC | EVC: | 2 BTDC | ||||
| Suggested Centre Lines: | Intake: | 130 | Exhaust: | 113 | |||
| VALVE | Lift @ TDC | Intake: | Exhaust: | 0.83 | |||
compatibility
- 1999-On Subaru STi
Specifications
| SKU | kelford-V2-199-A |
| Brand | KELFORD CAMS |
| Shipping Weight | 25.0000kg |
| Shipping Width | 0.600m |
| Shipping Height | 0.200m |
| Shipping Length | 0.250m |
