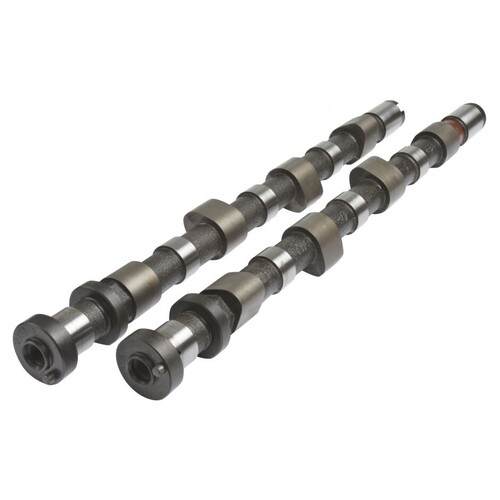

Kelford Cams V-188-A2 Camshaft Set for (R20DE/T S14/S15) - 266/270 Deg
KELFORD CAMS
Description
item: Kelford Cams V-188-A2 Camshaft Set for (R20DE/T S14/S15) - 266/270 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 266/270 Degrees advertised duration, 11.00mm/11.00mm lift
- High lift Drag racing camshafts. These camshafts suit engines running up to 45lb boost and 9500rpm with our recommended valve spring.
Specifications
Engine Make: | Engine Model: | Part Number: | |||||
NISSAN | SR20DE/T S14 & S15 NVCS | V-188-A2 | |||||
Valve Clearance: | Intake: | Set | at the | ||||
Exhaust: | Set | at the | |||||
Cam Lift: | Intake: | 7.10mm | Exhaust: | 7.10mm | |||
Rocker Ratio: | Intake: | 1.55 | Exhaust: | 1.55 | |||
Nett Valve Lift: | Intake: | 11.00mm | Exhaust: | 11.00mm | |||
Advertised Duration @ | 0.10mm | Intake: | 266 | Exhaust: | 270 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 224 | Exhaust: | 228 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 20 ATDC | EVO: | 48 BBDC | ||
IVC: | 64 ABDC | EVC: | 0 TDC | ||||
Suggested Centre Lines: | Intake: | 132 | Exhaust: | 114 | |||
VALVE | Lift @ TDC | Intake: | 0.02mm | Exhaust: | 0.96 |
compatibility
- 1993-2003 Nissan 200SX S14/S15
Specifications
SKU | kelford-V-188-A2 |
Brand | KELFORD CAMS |
Shipping Weight | 25.0000kg |
Shipping Width | 0.600m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
