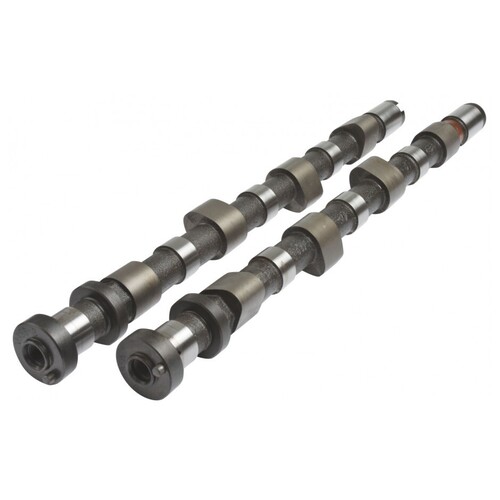

Kelford Cams V-188-A Camshaft Set for (R20DE/T S14/S15) - 260/266 Deg
Kelford Cams V-188-A Camshaft Set for (R20DE/T S14/S15) - 260/266 Deg
SKU: kelford-V-188-A

Kelford Cams V-188-A Camshaft Set for (R20DE/T S14/S15) - 260/266 Deg

KELFORD CAMS

$819.50

or 4 payments of $204.88 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams V-188-A Camshaft Set for (R20DE/T S14/S15) - 260/266 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 260/266 Degrees advertised duration, 11.80mm/11.00mm lift
  • Street performance cams to suit engines with turbo and ECU upgrades. Suits up to 30lb boost and 7500 RPM with our recommended valve spring. Will also drop in on stock spring.

Specifications

Engine Make: Engine Model: Part Number:
NISSAN SR20DE/T S14 & S15 NVCS V-188-A
Valve Clearance: Intake: Set at the
  Exhaust: Set at the

Cam Lift:   Intake: 7.61mm Exhaust: 7.10mm
Rocker Ratio:   Intake: 1.55 Exhaust: 1.55
Nett Valve Lift:   Intake: 11.80mm Exhaust: 11.00mm
Advertised Duration @ 0.10mm Intake: 260 Exhaust: 266
Duration @ 1.00mm VALVE LIFT Intake: 218 Exhaust: 222
Timing @ 1.00mm VALVE LIFT IVO: 21 ATDC EVO: 43 BBDC
    IVC: 59 ABDC EVC: 1 BTDC
Suggested Centre Lines:   Intake: 130 Exhaust: 112
VALVE Lift @ TDC Intake: 0.06mm Exhaust: 0.92



compatibility

  • 1993-2003 Nissan 200SX S14/S15

SKU kelford-V-188-A
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
