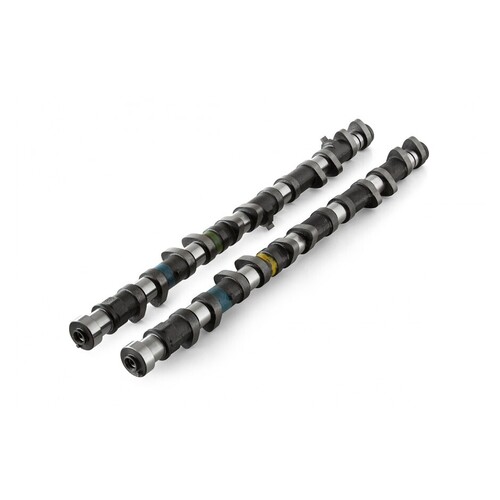

Kelford Cams T202-F Camshaft Set for (2JZ Turbo) - 282/286 Deg
KELFORD CAMS
Description
item: Kelford Cams T202-F Camshaft Set for (2JZ Turbo) - 282/286 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 282/286 Degrees advertised duration. 11.00mm/11.00mm lift
- 280 Degree racing cams to suit street / strip engines with a large turbo. Requires KVS93 valve springs. KVS93-BT valve springs are required if running over 2 bar boost.
Specifications
Engine Make: | Engine Model: | Part Number: | |||||
TOYOTA | Supra / 2JZ TURBO | T202-F | |||||
Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
Cam Lift: | Intake: | 11.25mm | Exhaust: | 11.25mm | |||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
Nett Valve Lift: | Intake: | 11.00mm | Exhaust: | 11.00mm | |||
Advertised Duration @ | 0.10mm | Intake: | 282 | Exhaust: | 286 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 244 | Exhaust: | 248 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 10 BTDC | EVO: | 64 BBDC | ||
IVC: | 54 ABDC | EVC: | 4 ATDC | ||||
Suggested Centre Lines: | Intake: | 112 | Exhaust: | 120 | |||
VALVE | Lift @ TDC | Intake: | 2.36mm | Exhaust: | 1.40 |
compatibility
- 1993-1998 Toyota Supra
Specifications
SKU | kelford-T202-F |
Brand | KELFORD CAMS |
Shipping Weight | 25.0000kg |
Shipping Width | 0.600m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
