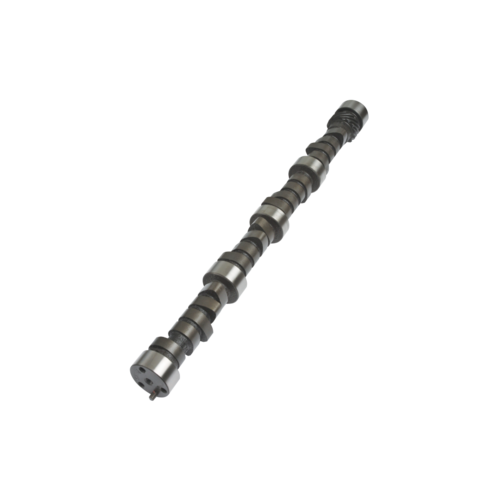

Kelford Cams SX105-G Camshaft for (Chev 262-400 Small Block V8) - 242/248 Deg
Kelford Cams SX105-G Camshaft for (Chev 262-400 Small Block V8) - 242/248 Deg
SKU: kelford-SX105-G

Kelford Cams SX105-G Camshaft for (Chev 262-400 Small Block V8) - 242/248 Deg

KELFORD CAMS

$356.22

or 4 payments of $89.06 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams SX105-G Camshaft for (Chev 262-400 Small Block V8) - 242/248 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 242/248 Degrees duration @ 0.050" cam lift, .515"/.515" lift
  • SX284 Street / strip cam, suits good heads, higher compression etc., 3000 converter, rough idle.

Specifications

Engine Make: Engine Model: Part Number:
CHEVROLET 262-400 Small Block V8 SX105-G
Valve Clearance: Intake: Set at the
  Exhaust: Set at the

Cam Lift:   Intake: 0.343" Exhaust: 0.343"
Rocker Ratio:   Intake: 1.5 Exhaust: 1.5
Nett Valve Lift:   Intake: 0.515" Exhaust: 0.515"
Advertised Duration @ 0.006" Intake: 286 Exhaust: 294
Duration @ .050" CAM LIFT Intake: 242 Exhaust: 248
Timing @ .050" CAM LIFT IVO: 16 BTDC EVO: 55 BBDC
    IVC: 46 ABDC EVC: 13 ATDC
Suggested Centre Lines:   Intake: 105 Exhaust: 111
CAM Lift @ TDC Intake: 0.102" Exhaust: 0.091"



compatibility

  • Chevrolet 262-400 Small Block V8

SKU kelford-SX105-G
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
