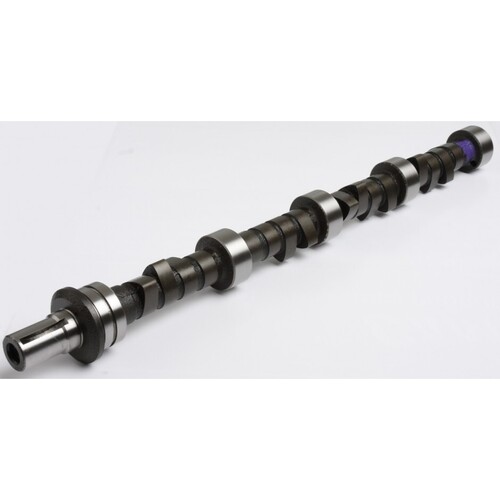

Kelford Cams S190-A Rally/Race Camshaft for (Rover 3.5 V8) - 242/248 Deg
Kelford Cams S190-A Rally/Race Camshaft for (Rover 3.5 V8) - 242/248 Deg
SKU: kelford-S190-A

Kelford Cams S190-A Rally/Race Camshaft for (Rover 3.5 V8) - 242/248 Deg

KELFORD CAMS

$640.09

or 4 payments of $160.02 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams S190-A Rally/Race Camshaft for (Rover 3.5 V8) - 242/248 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 242/248 Degrees duration @ 0.050" cam lift, .526"/.504" lift
  • Rally or circuit racing cams to suit ported head, 45mm throttles etc.

Specifications

Engine Make: Engine Model: Part Number:
ROVER 3.5 V8 S190-A
Valve Clearance: Intake: 0.016" Set COLD at the VALVE
  Exhaust: 0.018" Set COLD at the VALVE

Cam Lift:   Intake: 0.339" Exhaust: 0.326"
Rocker Ratio:   Intake: 1.6 Exhaust: 1.6
Nett Valve Lift:   Intake: 0.526" Exhaust: 0.504"
Advertised Duration @ 0.006" Intake: 285 Exhaust: 298
Duration @ .050" CAM LIFT Intake: 242 Exhaust: 248
Timing @ .050" CAM LIFT IVO: 17 BTDC EVO: 54 BBDC
    IVC: 45 ABDC EVC: 14 ATDC
Suggested Centre Lines:   Intake: 104 Exhaust: 110
CAM Lift @ TDC Intake: 0.102" Exhaust: 0.085"



compatibility

  • 1967-1976 Rover P5
  • 1968-1976 Rover P6
  • 1979-1982 Triump TR8
  • 1978-1985 LandRover Series III
  • 1983-1994 Land Rover 90/110/Defender
  • 1989-1998 Land Rover Discovery

SKU kelford-S190-A
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
