Kelford Cams H176-C Camshaft Set for (H22A Vtec) - 294/286 Deg
KELFORD CAMS
Description

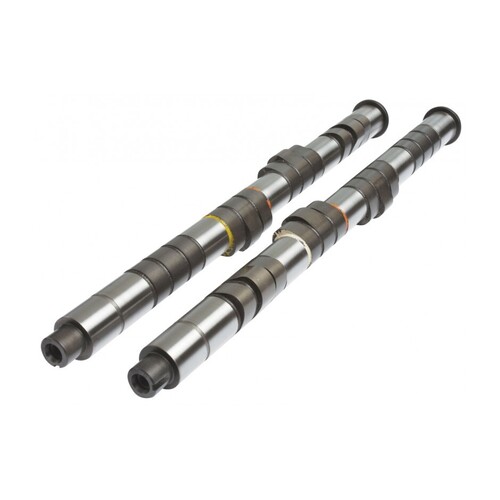

item: Kelford Cams H176-C Camshaft Set for (H22A Vtec) - 294/286 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 294/286 Degrees advertised duration, 11.80mm /11.30mm lift
- Full race cams to suit single seater or sports car.
Specifications
Engine Make: | Engine Model: | Part Number: | |||||
HONDA | H22A VTEC | H176-C | |||||
Valve Clearance: | Intake: | 0.30mm | Set | HOT | at the | VALVE | |
Exhaust: | 0.30mm | Set | HOT | at the | VALVE | ||
Cam Lift: | Intake: | 7.81mm | Exhaust: | 7.48mm | |||
Rocker Ratio: | Intake: | 1.55 | Exhaust: | 1.55 | |||
Nett Valve Lift: | Intake: | 11.80mm | Exhaust: | 11.30mm | |||
Advertised Duration @ | 0.10mm | Intake: | 294 | Exhaust: | 286 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 264 | Exhaust: | 256 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 30 BTDC | EVO: | 52 BBDC | ||
IVC: | 54 ABDC | EVC: | 24 ATDC | ||||
Suggested Centre Lines: | Intake: | 102 | Exhaust: | 104 | |||
VALVE | Lift @ TDC | Intake: | 4.70mm | Exhaust: | 3.86 |
compatibility
- 1992-1996 Honda Prelude BB4-BB6
- 1994-1997 Honda Accord SiR Sedan CD-6
- 1997 Honda Accord SiR Wagon CF-2
- 1997-2001 Honda Prelude BB6-BB8
- 1999-2001 Honda Accord/Torneo Euro-R CL1
Specifications
SKU | kelford-H176-C |
Brand | KELFORD CAMS |
Shipping Weight | 25.0000kg |
Shipping Width | 0.600m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
