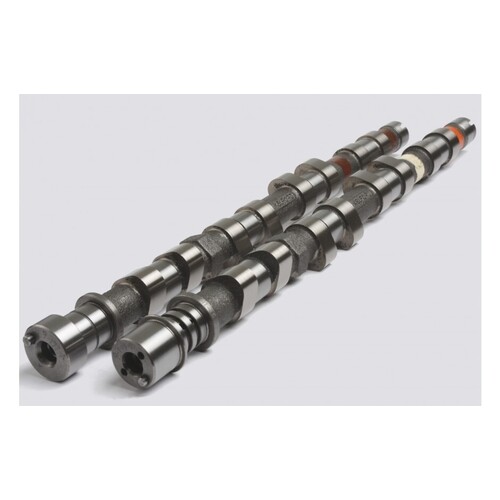

Kelford Cams 9-TX268 Camshaft Set for (Evo 9) - 264/268 Deg
KELFORD CAMS
Description
item: Kelford Cams 9-TX268 Camshaft Set for (Evo 9) - 264/268 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 264/268 Degree advertised duration, 11.00/10.50mm lift
- High performance cams for mid range performance engines, 350-550hp using E85 or similar blend fuels.
Specifications
Engine Make: | Engine Model: | Part Number: | |||||
MITSUBISHI | 4G63 EVO 9 MIVEC | 9-TX268 | |||||
Valve Clearance: | Intake: | Set | at the | ||||
Exhaust: | Set | at the | |||||
Cam Lift: | Intake: | 6.36mm | Exhaust: | 6.07mm | |||
Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
Nett Valve Lift: | Intake: | 11.00mm | Exhaust: | 10.50mm | |||
Advertised Duration @ | 0.10mm | Intake: | 264 | Exhaust: | 268 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 216 | Exhaust: | 220 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 22 ATDC | EVO: | 43 BBDC | ||
IVC: | 58 ABDC | EVC: | 3 BTDC | ||||
Suggested Centre Lines: | Intake: | 130 | Exhaust: | 113 | |||
VALVE | Lift @ TDC | Intake: | 0.12mm | Exhaust: | 0.84 |
compatibility
- 2005-2007 Mitsubishi Evo 9 4G63 MIVEC
Specifications
SKU | kelford-9-TX268 |
Brand | KELFORD CAMS |
Shipping Weight | 25.0000kg |
Shipping Width | 0.600m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
