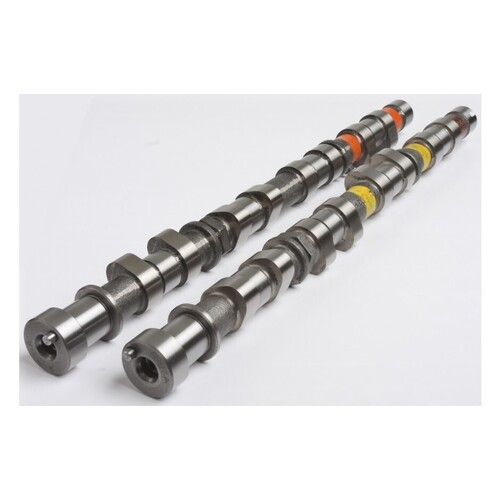

Kelford Cams 8-TX294HL High Lift Camshaft Set for (Evo 8) - 294/292 Deg
Kelford Cams 8-TX294HL High Lift Camshaft Set for (Evo 8) - 294/292 Deg
SKU: kelford-8-TX294HL

Kelford Cams 8-TX294HL High Lift Camshaft Set for (Evo 8) - 294/292 Deg

KELFORD CAMS

$922.85

or 4 payments of $230.71 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 8-TX294HL High Lift Camshaft Set for (Evo 8) - 294/292 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 294/292 Degree advertised duration, 12.50mm/12.00mm lift
  • High lift drag racing camshafts. These camshafts suit engines running up to 30lb boost and 9500 RPM with our recommended valve springs.

Specifications

Engine Make: Engine Model: Part Number:
MITSUBISHI 4G63 EVO 8 8-TX294HL
Valve Clearance: Intake: Set at the
  Exhaust: Set at the

Cam Lift:   Intake: 7.23mm Exhaust: 6.94mm
Rocker Ratio:   Intake: 1.73 Exhaust: 1.73
Nett Valve Lift:   Intake: 12.50mm Exhaust: 12.00mm
Advertised Duration @ 0.10mm Intake: 294 Exhaust: 292
Duration @ 1.00mm VALVE LIFT Intake: 250 Exhaust: 244
Timing @ 1.00mm VALVE LIFT IVO: 19 BTDC EVO: 59 BBDC
    IVC: 51 ABDC EVC: 5 ATDC
Suggested Centre Lines:   Intake: 106 Exhaust: 117
VALVE Lift @ TDC Intake: 2.69mm Exhaust: 1.35



compatibility

  • 2003-2005 Mitsubishi Evo 8 4G63

SKU kelford-8-TX294HL
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
