Kelford Cams 8-TX280R Camshaft Set for (Evo 8) - 280/288 Deg
KELFORD CAMS
Description

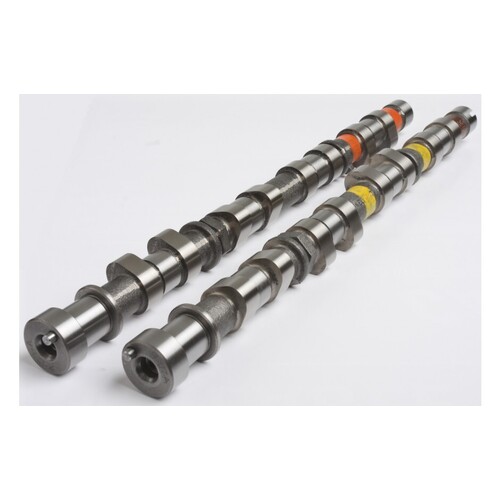

item: Kelford Cams 8-TX280R Camshaft Set for (Evo 8) - 280/288 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 280/288 Degree advertised duration, 11.50/11.50mm lift
- High HP racing camshafts. These camshafts suit well built time attack and drag racing engines using E85 fuel.
Specifications
| Engine Make: | Engine Model: | Part Number: | |||||
| MITSUBISHI | 4G63 EVO 8 | 8-TX280R | |||||
| Valve Clearance: | Intake: | Set | at the | ||||
| Exhaust: | Set | at the | |||||
| Cam Lift: | Intake: | 6.65mm | Exhaust: | 6.65mm | |||
| Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
| Nett Valve Lift: | Intake: | 11.50mm | Exhaust: | 11.50mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 280 | Exhaust: | 288 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 238 | Exhaust: | 242 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 12 BTDC | EVO: | 57 BBDC | ||
| IVC: | 46 ABDC | EVC: | 5 ATDC | ||||
| Suggested Centre Lines: | Intake: | 107 | Exhaust: | 116 | |||
| VALVE | Lift @ TDC | Intake: | 2.09mm | Exhaust: | 1.29 | ||
compatibility
- 2003-2005 Mitsubishi Evo 8 4G63
Specifications
| SKU | kelford-8-TX280R |
| Brand | KELFORD CAMS |
| Shipping Weight | 25.0000kg |
| Shipping Width | 0.600m |
| Shipping Height | 0.200m |
| Shipping Length | 0.250m |
