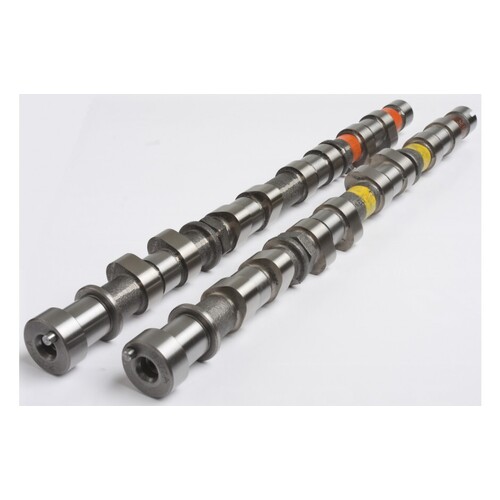

Kelford Cams 8-SLX260 Camshaft Set to Suit Solid Lifter Conversion for (Evo 8) - 260/264 Deg
Kelford Cams 8-SLX260 Camshaft Set to Suit Solid Lifter Conversion for (Evo 8) - 260/264 Deg
SKU: kelford-8-SLX260

Kelford Cams 8-SLX260 Camshaft Set to Suit Solid Lifter Conversion for (Evo 8) - 260/264 Deg

KELFORD CAMS

$922.85

or 4 payments of $230.71 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 8-SLX260 Camshaft Set to Suit Solid Lifter Conversion for (Evo 8) - 260/264 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 260/264 Degree advertised duration, 10.50mm/10.50mm lift
  • Cams for Mitsubishi 4G63 Evolution 8 engines with solid lifter conversion. This is the solid version of our mega popular TX272 design.

Specifications

Engine Make: Engine Model: Part Number:
MITSUBISHI 4G63 EVO 8 8-SLX260
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
  Exhaust: 0.20mm Set COLD at the CAM

Cam Lift:   Intake: 6.27mm Exhaust: 6.27mm
Rocker Ratio:   Intake: 1.73 Exhaust: 1.73
Nett Valve Lift:   Intake: 10.50mm Exhaust: 10.50mm
Advertised Duration @ 0.10mm Intake: 260 Exhaust: 264
Duration @ 1.00mm VALVE LIFT Intake: 212 Exhaust: 220
Timing @ 1.00mm VALVE LIFT IVO: 1 ATDC EVO: 43 BBDC
    IVC: 33 ABDC EVC: 3 BTDC
Suggested Centre Lines:   Intake: 107 Exhaust: 113
VALVE Lift @ TDC Intake: 0.91mm Exhaust: 0.76



compatibility

  • 2003-2005 Mitsubishi Evo 8 4G63

SKU kelford-8-SLX260
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
