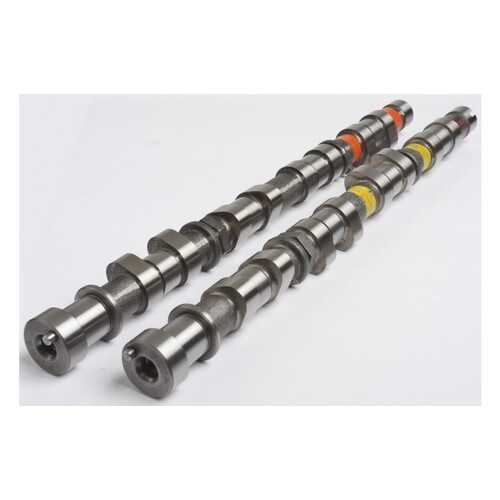

Kelford Cams 4-TX276HL High Lift Camshaft Set for (Evo 4-7) - 276/272 Deg
Kelford Cams 4-TX276HL High Lift Camshaft Set for (Evo 4-7) - 276/272 Deg
SKU: kelford-4-TX276HL

Kelford Cams 4-TX276HL High Lift Camshaft Set for (Evo 4-7) - 276/272 Deg

KELFORD CAMS

$922.85

or 4 payments of $230.71 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 4-TX276HL High Lift Camshaft Set for (Evo 4-7) - 276/272 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 276/272 Degree advertised duration, 12.50mm/12.00mm High lift
  • These camshafts suit well built time attack and drag racing engines using E85 fuel.

Specifications

Engine Make: Engine Model: Part Number:
MITSUBISHI 4G63 EVO 4-7 4-TX276HL
Valve Clearance: Intake: Set at the
  Exhaust: Set at the

Cam Lift:   Intake: 7.23mm Exhaust: 6.94mm
Rocker Ratio:   Intake: 1.73 Exhaust: 1.73
Nett Valve Lift:   Intake: 12.50mm Exhaust: 12.00mm
Advertised Duration @ 0.10mm Intake: 276 Exhaust: 272
Duration @ 1.00mm VALVE LIFT Intake: 234 Exhaust: 230
Timing @ 1.00mm VALVE LIFT IVO: 11 BTDC EVO: 50 BBDC
    IVC: 43 ABDC EVC: 0 TDC
Suggested Centre Lines:   Intake: 106 Exhaust: 115
VALVE Lift @ TDC Intake: 1.98mm Exhaust: 1.03



compatibility

  • 1996-2002 Mitsubishi Evo 4-7 4G63

SKU kelford-4-TX276HL
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
