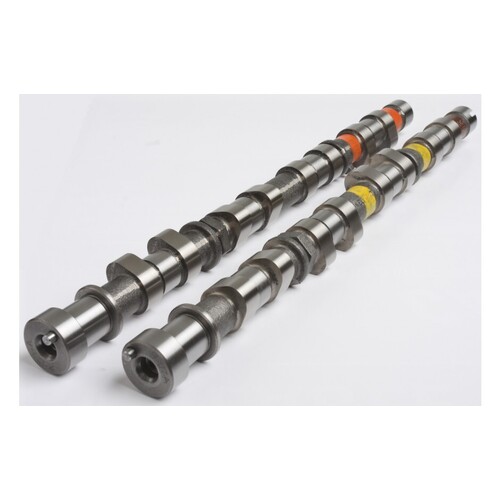

Kelford Cams 4-SLX294 Camshaft Set to Suit Solid Lifter Conversion for (Evo 4-7) - 294/300 Deg
Kelford Cams 4-SLX294 Camshaft Set to Suit Solid Lifter Conversion for (Evo 4-7) - 294/300 Deg
SKU: kelford-4-SLX294

Kelford Cams 4-SLX294 Camshaft Set to Suit Solid Lifter Conversion for (Evo 4-7) - 294/300 Deg

KELFORD CAMS

$922.85

or 4 payments of $230.71 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 4-SLX294 Camshaft Set to Suit Solid Lifter Conversion for (Evo 4-7) - 294/300 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 294/300 Degree advertised duration, 12.00mm/12.00mm lift
  • For Mitsubishi 4G63 Evolution 4-7 engines with solid lifter conversion to suit 32-40mm restrictor plate and GPA rally engines.

Specifications

Engine Make: Engine Model: Part Number:
MITSUBISHI 4G63 EVO 4-7 4-SLX294
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
  Exhaust: 0.20mm Set COLD at the CAM

Cam Lift:   Intake: 7.14mm Exhaust: 7.14mm
Rocker Ratio:   Intake: 1.73 Exhaust: 1.73
Nett Valve Lift:   Intake: 12.00mm Exhaust: 12.00mm
Advertised Duration @ 0.10mm Intake: 294 Exhaust: 300
Duration @ 1.00mm VALVE LIFT Intake: 251 Exhaust: 258
Timing @ 1.00mm VALVE LIFT IVO: 15.5 BTDC EVO: 67 BBDC
    IVC: 55.5 ABDC EVC: 11 ATDC
Suggested Centre Lines:   Intake: 110 Exhaust: 118
VALVE Lift @ TDC Intake: 2.40mm Exhaust: 1.90



compatibility

  • 1996-2002 Mitsubishi Evo 4-7 4G63

SKU kelford-4-SLX294
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
