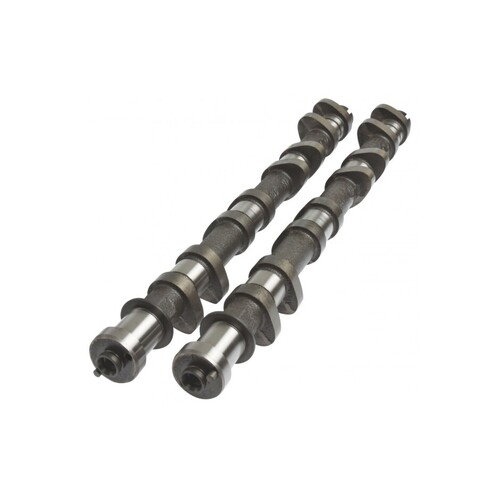

Kelford Cams 3-195-TB Camshaft Set for (3S-GTE Gen 3) - 272/272 Deg
Kelford Cams 3-195-TB Camshaft Set for (3S-GTE Gen 3) - 272/272 Deg
SKU: kelford-3-195-TB

Kelford Cams 3-195-TB Camshaft Set for (3S-GTE Gen 3) - 272/272 Deg

KELFORD CAMS

$1,056.43

or 4 payments of $264.11 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 3-195-TB Camshaft Set for (3S-GTE Gen 3) - 272/272 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 272/272 Degrees advertised duration. 10.80mm/10.80mm lift
  • 3S-GTE Turbo cams for street performance engines with stock turbo.

Specifications

Engine Make: Engine Model: Part Number:
TOYOTA 3S-GE (Gen 3) 3-195-TB
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 11.05mm Exhaust: 11.10mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.80mm Exhaust: 10.80mm
Advertised Duration @ 0.30mm Intake: 272 Exhaust: 272
Duration @ 1.00mm VALVE LIFT Intake: 232 Exhaust: 232
Timing @ 1.00mm VALVE LIFT IVO: 8 BTDC EVO: 50 BBDC
    IVC: 44 ABDC EVC: 2 ATDC
Suggested Centre Lines:   Intake: 108 Exhaust: 114
VALVE Lift @ TDC Intake: 1.88mm Exhaust: 1.15



compatibility

  • 1994-1999 Toyota Celica ST205
  • 1994-1999 Toyota MR2 Turbo (1993+ Japan Turbo)

SKU kelford-3-195-TB
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
