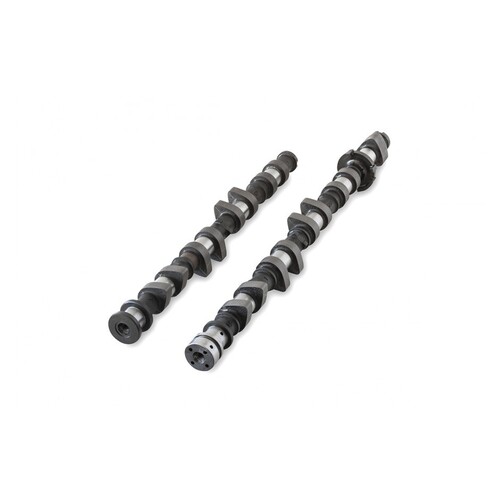

Kelford Cams 247-D Camshaft Set for (Mazda 2.3 DISI) - 282/292 Deg
Kelford Cams 247-D Camshaft Set for (Mazda 2.3 DISI) - 282/292 Deg
SKU: kelford-247-D

Kelford Cams 247-D Camshaft Set for (Mazda 2.3 DISI) - 282/292 Deg

KELFORD CAMS

$1,024.14

or 4 payments of $256.04 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 247-D Camshaft Set for (Mazda 2.3 DISI) - 282/292 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 282/292 Degrees advertised duration, 11.25mm/11.25mm lift
  • Stage 4 Drag Cams to suit Professionally built drag engines. Great on E85/Meth, 1000hp+ Cams for the serious user.

Specifications

Engine Make: Engine Model: Part Number:
MAZDA 2.3 DISI 247-D
Valve Clearance: Intake: 0.30mm Set COLD at the CAM
  Exhaust: 0.35mm Set COLD at the CAM

Cam Lift:   Intake: 11.55mm Exhaust: 11.60mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 11.25mm Exhaust: 11.25mm
Advertised Duration @ 0.10mm Intake: 282 Exhaust: 292
Duration @ 1.00mm VALVE LIFT Intake: 242 Exhaust: 248
Timing @ 1.00mm VALVE LIFT IVO: 9 BTDC EVO: 62 BBDC
    IVC: 53 ABDC EVC: 6 ATDC
Suggested Centre Lines:   Intake: 112 Exhaust: 118
VALVE Lift @ TDC Intake: 1.96mm Exhaust: 1.56



compatibility

  • 2005-2012 Mazdaspeed6/ Mazda6 MPS/Atenza MPS, Mazda CX-7, Mazdaspeed3/ Mazda3 MPS/Axela MPS, Mazda MPV (JDM only)

SKU kelford-247-D
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
