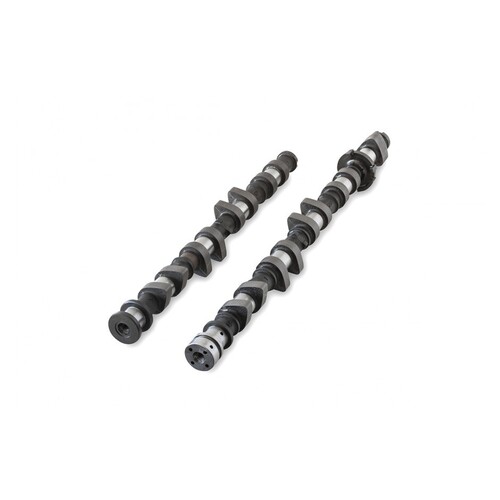

Kelford Cams 247-B Camshaft Set for (Mazda 2.3 DISI) - 260/268 Deg
Kelford Cams 247-B Camshaft Set for (Mazda 2.3 DISI) - 260/268 Deg
SKU: kelford-247-B

Kelford Cams 247-B Camshaft Set for (Mazda 2.3 DISI) - 260/268 Deg

KELFORD CAMS

$1,024.14

or 4 payments of $256.04 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 247-B Camshaft Set for (Mazda 2.3 DISI) - 260/268 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 260/268 Degrees advertised duration, 10.25mm/10.50mm lift
  • Ultimate race cams for methanol burning pro drag racing motors, 6 second 2000HP+ type builds.

Specifications

Engine Make: Engine Model: Part Number:
MAZDA 2.3 DISI 247-B
Valve Clearance: Intake: 0.30mm Set COLD at the CAM
  Exhaust: 0.35mm Set COLD at the CAM

Cam Lift:   Intake: 10.55mm Exhaust: 10.85mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.25mm Exhaust: 10.50mm
Advertised Duration @ 0.10mm Intake: 260 Exhaust: 268
Duration @ 1.00mm VALVE LIFT Intake: 220 Exhaust: 228
Timing @ 1.00mm VALVE LIFT IVO: 18 ATDC EVO: 48 BBDC
    IVC: 58 ABDC EVC: 0 TDC
Suggested Centre Lines:   Intake: 128 Exhaust: 114
VALVE Lift @ TDC Intake: 0.08mm Exhaust: 0.99



compatibility

  • 2005-2012 Mazdaspeed6/ Mazda6 MPS/Atenza MPS, Mazda CX-7, Mazdaspeed3/ Mazda3 MPS/Axela MPS, Mazda MPV (JDM only)

SKU kelford-247-B
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
