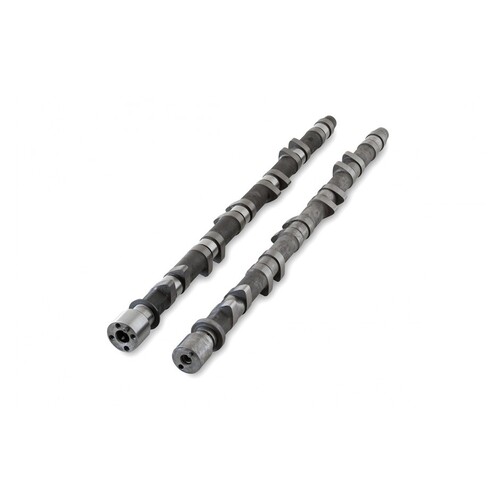

Kelford Cams 246-B Camshaft Set for (RB25 NVCS) - 262/272 Deg/10mm Lift
Kelford Cams 246-B Camshaft Set for (RB25 NVCS) - 262/272 Deg/10mm Lift
SKU: kelford-246-B

Kelford Cams 246-B Camshaft Set for (RB25 NVCS) - 262/272 Deg/10mm Lift

KELFORD CAMS

$1,196.69

or 4 payments of $299.17 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 246-B Camshaft Set for (RB25 NVCS) - 262/272 Deg/10mm Lift

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 262/272 Degrees advertised duration, 10.00mm/10.00mm lift
  • Rally or race camshafts.

Specifications

Engine Make: Engine Model: Part Number:
NISSAN RB25 NVCS 246-B
Valve Clearance: Intake: Set at the
  Exhaust: Set at the

Cam Lift:   Intake: 10.00mm Exhaust: 10.00mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.00mm Exhaust: 10.00mm
Advertised Duration @ 0.10mm Intake: 264 Exhaust: 272
Duration @ 1.00mm VALVE LIFT Intake: 224 Exhaust: 232
Timing @ 1.00mm VALVE LIFT IVO: EVO: 51 BBDC
    IVC: EVC: 1 BTDC
Suggested Centre Lines:   Intake: VARI Exhaust: 116
VALVE Lift @ TDC Intake: Exhaust:



compatibility

  • 1995-1998 Nissan Skyline R33 GTS-T

SKU kelford-246-B
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
