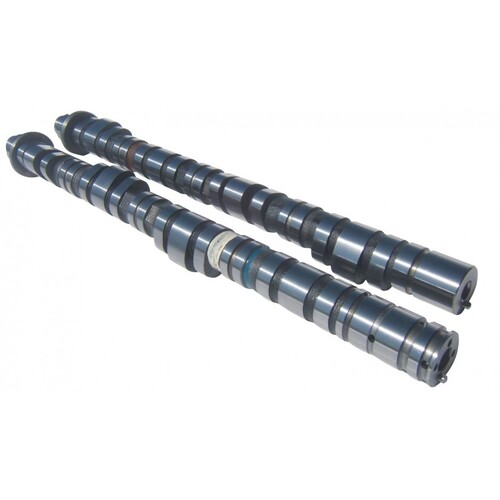

Kelford Cams 179-B Camshaft Set for (K20A/K24A i-VTEC) - 306/302 Deg
Kelford Cams 179-B Camshaft Set for (K20A/K24A i-VTEC) - 306/302 Deg
SKU: kelford-179-B

Kelford Cams 179-B Camshaft Set for (K20A/K24A i-VTEC) - 306/302 Deg

KELFORD CAMS

$1,485.00

or 4 payments of $371.25 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 179-B Camshaft Set for (K20A/K24A i-VTEC) - 306/302 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 306/302 degrees advertised duration. 13.50mm/12.20mm lift
  • Stage 2 racing cams for well modified, turbocharged 3RZ-FE engine builds.

Specifications

Engine Make: Engine Model: Part Number:
HONDA K20 i-VTEC 179-B
Valve Clearance: Intake: 0.30mm Set HOT at the VALVE
  Exhaust: 0.30mm Set HOT at the VALVE

Cam Lift:   Intake: 8.12mm Exhaust: 7.35mm
Rocker Ratio:   Intake: 1.7 Exhaust: 1.7
Nett Valve Lift:   Intake: 13.50mm Exhaust: 12.20mm
Advertised Duration @ 0.10mm Intake: 306 Exhaust: 302
Duration @ 1.00mm VALVE LIFT Intake: 260 Exhaust: 244
Timing @ 1.00mm VALVE LIFT IVO: EVO: 46 BBDC
    IVC: EVC: 18 ATDC
Suggested Centre Lines:   Intake: VARI Exhaust: 104
VALVE Lift @ TDC Intake: Exhaust: 2.46



compatibility

  • 2002-2004 Honda Integra Type R
  • 2002-2005 Honda Civic
  • 2003-2007 Honda Accord
  • 2002-2006 Honda CR-V
  • 2003-2008 Honda Odyssey

SKU kelford-179-B
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
