Kelford Cams 231-E Camshaft Set for (VR38DETT) - 292/306 Deg
KELFORD CAMS
Description

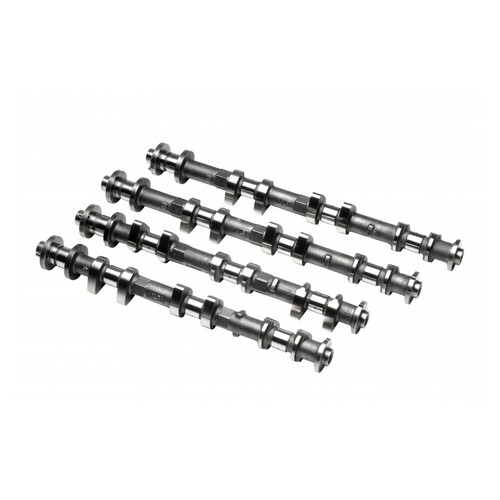

item: Kelford Cams 231-E Camshaft Set for (VR38DETT) - 292/306 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 292/306 Degrees advertised duration, 11.00mm/11.00mm lift
- Ultimate drift spec cams featuring maximum lobe area and low duration for fast spool and lots of top end power. Requires KVS93 valve springs. KVS93-BT valve springs are required if running over 2 bar boost.
Specifications
Engine Make: | Engine Model: | Part Number: | |||||
NISSAN | VR38 R35 GTR | 231-E | |||||
Valve Clearance: | Intake: | 0.30mm | Set | COLD | at the | CAM | |
Exhaust: | 0.33mm | Set | COLD | at the | CAM | ||
Cam Lift: | Intake: | 11.30mm | Exhaust: | 11.33mm | |||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
Nett Valve Lift: | Intake: | 11.00mm | Exhaust: | 11.00mm | |||
Advertised Duration @ | 0.30mm | Intake: | 292 | Exhaust: | 306 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 246 | Exhaust: | 260 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 7 ATDC | EVO: | 68 BBDC | ||
IVC: | 73 ABDC | EVC: | 12 ATDC | ||||
Suggested Centre Lines: | Intake: | 130 | Exhaust: | 118 | |||
VALVE | Lift @ TDC | Intake: | 0.51mm | Exhaust: | 2.08 |
compatibility
- 2008-2019 Nissan Skyline R35 GTR VR38
Specifications
SKU | kelford-231-E |
Brand | KELFORD CAMS |
Shipping Weight | 25.0000kg |
Shipping Width | 0.600m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
