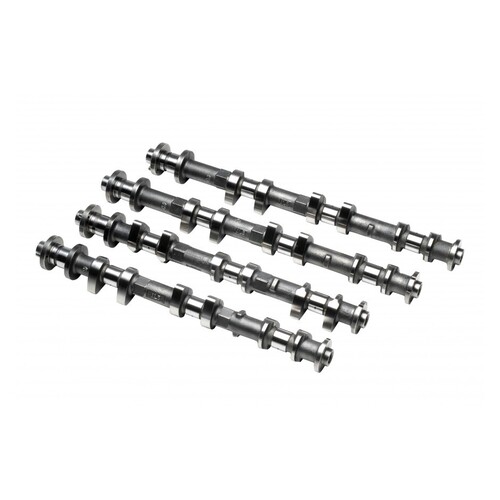

Kelford Cams 231-A Camshaft Set for (VR38DETT) - 266/266 Deg
Kelford Cams 231-A Camshaft Set for (VR38DETT) - 266/266 Deg
SKU: kelford-231-A

Kelford Cams 231-A Camshaft Set for (VR38DETT) - 266/266 Deg

KELFORD CAMS

$1,929.95

or 4 payments of $482.49 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 231-A Camshaft Set for (VR38DETT) - 266/266 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 266/266 Degrees advertised duration, 10.00mm/9.25mm lift
  • Stage 1 drop in cams for turbocharged or naturally aspirated applications.

Specifications

Engine Make: Engine Model: Part Number:
NISSAN VR38 R35 GTR 231-A
Valve Clearance: Intake: 0.30mm Set COLD at the CAM
  Exhaust: 0.33mm Set COLD at the CAM

Cam Lift:   Intake: 10.30mm Exhaust: 9.58mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.00mm Exhaust: 9.25mm
Advertised Duration @ 0.30mm Intake: 266 Exhaust: 266
Duration @ 1.00mm VALVE LIFT Intake: 226 Exhaust: 226
Timing @ 1.00mm VALVE LIFT IVO: 13 ATDC EVO: 48 BBDC
    IVC: 59 ABDC EVC: 2 BTDC
Suggested Centre Lines:   Intake: 126 Exhaust: 115
VALVE Lift @ TDC Intake: 0.13mm Exhaust: 0.78



compatibility

  • 2008-2019 Nissan Skyline R35 GTR VR38

SKU kelford-231-A
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
