Kelford Cams 229-D Camshaft Set for (1JZ Turbo) - 272/278 Deg
KELFORD CAMS
Description

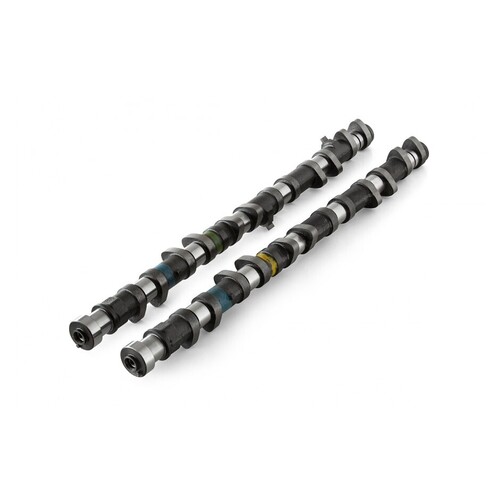

item: Kelford Cams 229-D Camshaft Set for (1JZ Turbo) - 272/278 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 272/278 Degrees advertised duration. 9.95mm/9.95mm lift
- 272/276 Degrees advertised duration, 12.10mm/11.70mm lift. Gti-R racing cams for midrange and top end power.
Specifications
| Engine Make: | Engine Model: | Part Number: | |||||
| TOYOTA | 1JZ TURBO | 229-D | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 10.20mm | Exhaust: | 10.20mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 9.95mm | Exhaust: | 9.95mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 272 | Exhaust: | 278 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 236 | Exhaust: | 240 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 8 BTDC | EVO: | 56 BBDC | ||
| IVC: | 48 ABDC | EVC: | 4 ATDC | ||||
| Suggested Centre Lines: | Intake: | 110 | Exhaust: | 116 | |||
| VALVE | Lift @ TDC | Intake: | 1.83mm | Exhaust: | 0.94 | ||
compatibility
- 1988-1995 Toyota Chaser/Cresta/Mark II 2.5GT Twin Turbo (JZX81)
- 1992-2000 Toyota Chaser/Cresta/Mark II Tourer V (JZX90, JZX100)
- 2000-2007 Toyota Verossa/Mark II iR-V (JZX110)
- 1991-2000 Toyota Soarer 2.5 GT-T(JZZ30)
- 1989-1993 Toyota Supra MK III 2.5 Twin Turbo (R) (JZA70)
- 2001-2004 Toyota Verossa VR25 (JZX110)
- 1999-2007 Toyota Crown Athlete V (JZS171)
- 2002-2007 Toyota Mark II Blit iR-V (JZX110W)
Specifications
| SKU | kelford-229-D |
| Brand | KELFORD CAMS |
| Shipping Weight | 25.0000kg |
| Shipping Width | 0.600m |
| Shipping Height | 0.200m |
| Shipping Length | 0.250m |
