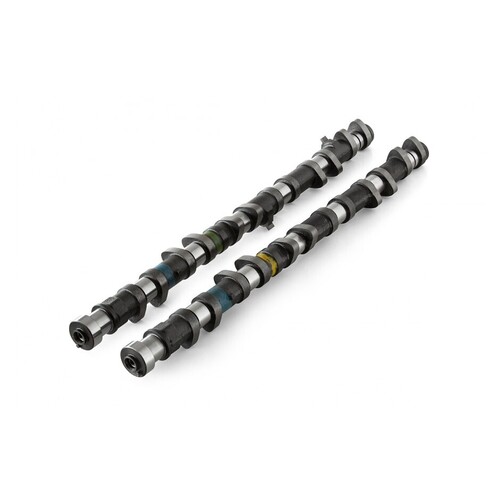

Kelford Cams 229-A Camshaft Set for (1JZ Turbo) - 248/248 Deg
Kelford Cams 229-A Camshaft Set for (1JZ Turbo) - 248/248 Deg
SKU: kelford-229-A

Kelford Cams 229-A Camshaft Set for (1JZ Turbo) - 248/248 Deg

KELFORD CAMS

$1,223.41

or 4 payments of $305.85 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 229-A Camshaft Set for (1JZ Turbo) - 248/248 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 248/248 Degrees advertised duration. 8.70mm/8.70mm lift
  • High performance street cams for a near stock engine to suit up to 30 lb boost and 7000 RPM with our recommended valve spring. Will suit stock valve spring with stock redline

Specifications

Engine Make: Engine Model: Part Number:
TOYOTA 1JZ TURBO 229-A
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 8.95mm Exhaust: 8.95mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 8.70mm Exhaust: 8.70mm
Advertised Duration @ 0.10mm Intake: 248 Exhaust: 248
Duration @ 1mm VALVE LIFT Intake: 210 Exhaust: 210
Timing @ 1mm VALVE LIFT IVO: 4 ATDC EVO: 41 BBDC
    IVC: 34 ABDC EVC: 11 BTDC
Suggested Centre Lines:   Intake: 109 Exhaust: 116
VALVE Lift @ TDC Intake: 0.68mm Exhaust: 0.06mm



compatibility

  • 1988-1995 Toyota Chaser/Cresta/Mark II 2.5GT Twin Turbo (JZX81)
  • 1992-2000 Toyota Chaser/Cresta/Mark II Tourer V (JZX90, JZX100)
  • 2000-2007 Toyota Verossa/Mark II iR-V (JZX110)
  • 1991-2000 Toyota Soarer 2.5 GT-T(JZZ30)
  • 1989-1993 Toyota Supra MK III 2.5 Twin Turbo (R) (JZA70)
  • 2001-2004 Toyota Verossa VR25 (JZX110)
  • 1999-2007 Toyota Crown Athlete V (JZS171)
  • 2002-2007 Toyota Mark II Blit iR-V (JZX110W)

SKU kelford-229-A
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
