SKU: kelford-220-E

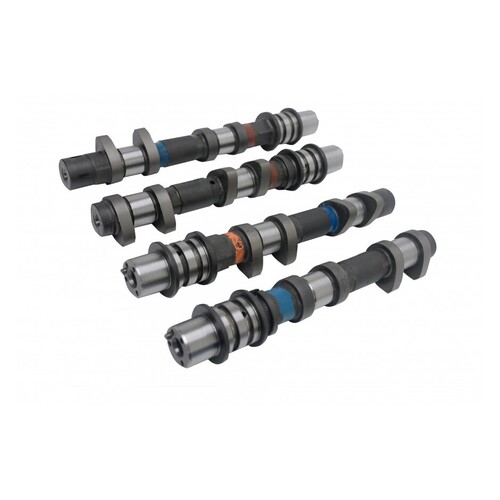

Kelford Cams 220-E Camshaft Set for (EJ257B w/Dual AVCS) - 292, 288/294 Deg

KELFORD CAMS

$1,633.50

or 4 payments of $408.38 with Info



In Stock


Calculate Shipping



Australia wide rate - $45.00

Description

item: Kelford Cams 220-E Camshaft Set for (EJ257B w/Dual AVCS) - 292, 288/294 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 292&288/294 Degrees advertised duration. 11.00mm&11.00mm/11.00mm lift
  • 290 degree camshafts to suit high boost, high rpm Drag racing engines. Must be run with fixed timing, not suitable in variable situations.

Specifications

Engine Make: Engine Model: Part Number:
SUBARU EJ257B 220-E
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 11.20mm Exhaust: 11.25mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 11.00mm Exhaust: 11.00mm
Advertised Duration @ 0.25mm Intake: 292 Exhaust: 294
Duration @ 1.00mm VALVE LIFT Intake: 250 Exhaust: 252
Timing @ 1.00mm VALVE LIFT IVO: 13 BTDC EVO: 64 BBDC
    IVC: 57 ABDC EVC: 8 ATDC
Suggested Centre Lines:   Intake: 112 Exhaust: 118
VALVE Lift @ TDC Intake: 2.42mm Exhaust: 1.85



compatibility

  • 2008-2014 Subaru WRX
  • 2008-On Subaru STi
  • 2008-2013 Subaru FXT
  • 2004-2009 Subaru LGT

Specifications

SKU kelford-220-E
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
