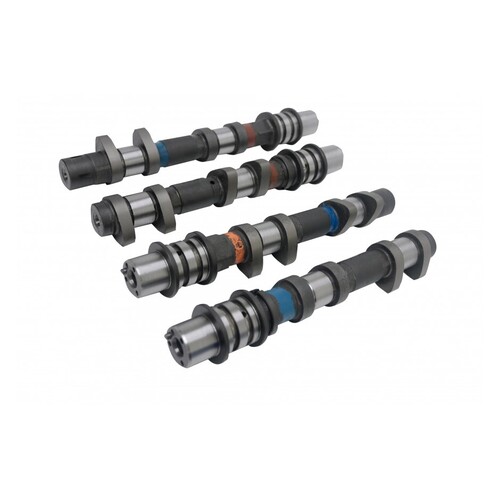

Kelford Cams 220-D Camshaft Set for (EJ257B w/Dual AVCS) - 282, 278/278 Deg
KELFORD CAMS
Description
item: Kelford Cams 220-D Camshaft Set for (EJ257B w/Dual AVCS) - 282, 278/278 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 282&278/278 Degrees advertised duration. 11.50mm&11.00mm/11.00mm lift
- High Lift 282 degree duration racing camshafts. These cams require cylinder head modification to fit. Suits well built motors with larger intake manifolds. Good on E85 fuel. Must have shimless buckets and aftermarket ECU.
Specifications
Engine Make: | Engine Model: | Part Number: | |||||
SUBARU | EJ257B | 220-D | |||||
Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM | |
Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
Cam Lift: | Intake: | 11.70mm | Exhaust: | 11.25mm | |||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
Nett Valve Lift: | Intake: | 11.50mm | Exhaust: | 11.00mm | |||
Advertised Duration @ | 0.25mm | Intake: | 282 | Exhaust: | 278 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 240 | Exhaust: | 236 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 10 ATDC | EVO: | 64 BBDC | ||
IVC: | 70 ABDC | EVC: | 8 BTDC | ||||
Suggested Centre Lines: | Intake: | 130 | Exhaust: | 126 | |||
VALVE | Lift @ TDC | Intake: | 0.25mm | Exhaust: | 0.43mm |
compatibility
- 2008-2014 Subaru WRX
- 2008-On Subaru STi
- 2008-2013 Subaru FXT
- 2004-2009 Subaru LGT
Specifications
SKU | kelford-220-D |
Brand | KELFORD CAMS |
Shipping Weight | 25.0000kg |
Shipping Width | 0.600m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
