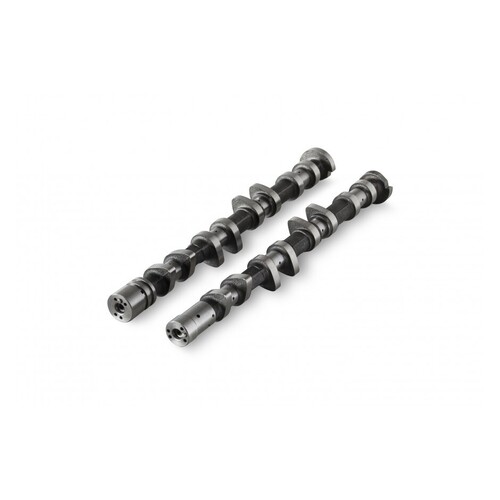

Kelford Cams 214-R Restricted Rally Camshaft Set for (Evo X)
Kelford Cams 214-R Restricted Rally Camshaft Set for (Evo X)
SKU: kelford-214-R

Kelford Cams 214-R Restricted Rally Camshaft Set for (Evo X)

KELFORD CAMS

$935.09

or 4 payments of $233.77 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 214-R Restricted Rally Camshaft Set for (Evo X)

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 260&254/262 Degrees advertised duration, 10.00mm 9.75mm/10.00mm lift
  • Cams for the best all round performance. These suit 400-600HP racing engines.

Specifications

Engine Make: Engine Model: Part Number:
MITSUBISHI EVO X 214-R
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.35mm Set COLD at the CAM

Cam Lift:   Intake: 10.25mm Exhaust: 10.35mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.00mm Exhaust: 10.00mm
Advertised Duration @ 0.10mm Intake: 260 Exhaust: 262
Duration @ 1.00mm VALVE LIFT Intake: 214 Exhaust: 220
Timing @ 1.00mm VALVE LIFT IVO: EVO:
    IVC: EVC:
Suggested Centre Lines:   Intake: VARI Exhaust: VARI
Lift @ TDC Intake: Exhaust:



compatibility

  • 2007-2016 Mitsubishi Evo X

SKU kelford-214-R
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
