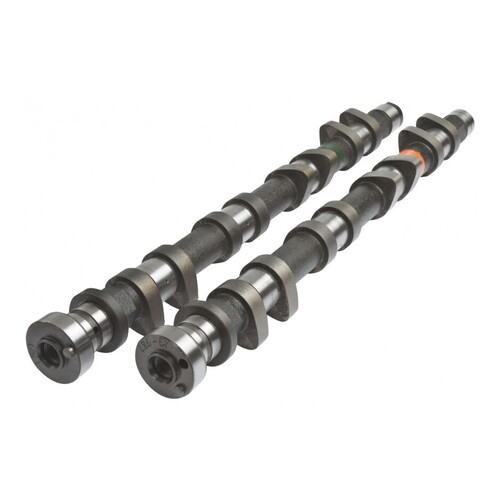

Kelford Cams 213-C Camshaft Set for (KA24) - 278/278 Deg
Kelford Cams 213-C Camshaft Set for (KA24) - 278/278 Deg
SKU: kelford-213-C

Kelford Cams 213-C Camshaft Set for (KA24) - 278/278 Deg

KELFORD CAMS

$935.09

or 4 payments of $233.77 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 213-C Camshaft Set for (KA24) - 278/278 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 278/278 Degrees advertised duration, 11.00mm/11.00mm lift
  • Stage 3 cams to suit club race and rally applications. Use in fixed cam timing position or variable.

Specifications

Engine Make: Engine Model: Part Number:
NISSAN KA24 213-C
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 11.25mm Exhaust: 11.25mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 11.00mm Exhaust: 11.00mm
Advertised Duration @ 0.30mm Intake: 278 Exhaust: 278
Duration @ 1.00mm VALVE LIFT Intake: 236 Exhaust: 236
Timing @ 1.00mm VALVE LIFT IVO: 8 BTDC EVO: 54 BBDC
    IVC: 48 ABDC EVC: 2 ATDC
Suggested Centre Lines:   Intake: 110 Exhaust: 116
VALVE Lift @ TDC Intake: 1.83mm Exhaust: 1.20



compatibility

  • 1989-1990 Nissan 240SX
  • 1990-1997 Nissan Navara D21
  • 1997-1999 Nissan Navara D22
  • 1990-1995 Nissan Pathfinder
  • 1989-1995 Nissan Axxess / Nissan Prairie (not UK except parallel imports for wheelchair conversions post 1991)
  • 1990-1992 Nissan Stanza (USA-spec)
  • 1989-1992 Nissan Pintara / Ford Corsair
  • 1993-1996 Nissan Terrano II Europe
  • 2000-2004 Nissan Xterra
  • 1998-2016 Nissan Navara/Frontier (D22)
  • 1991-1998 Nissan 240SX
  • 1993-1997 Nissan Bluebird U13

SKU kelford-213-C
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
