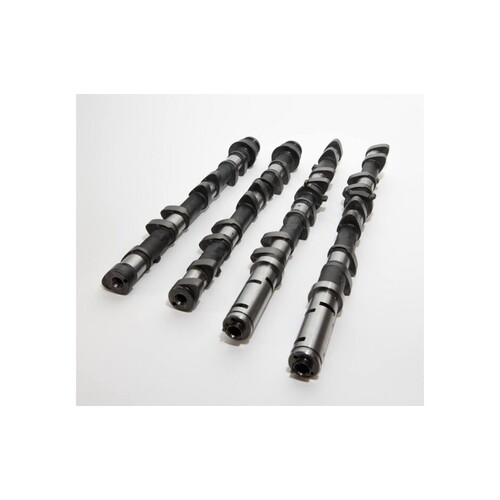

Kelford Cams 208-C Camshaft Set for (1UZ-VVTI) - 272/270 Deg
Kelford Cams 208-C Camshaft Set for (1UZ-VVTI) - 272/270 Deg
SKU: kelford-208-C

Kelford Cams 208-C Camshaft Set for (1UZ-VVTI) - 272/270 Deg

KELFORD CAMS

$2,443.47


In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 208-C Camshaft Set for (1UZ-VVTI) - 272/270 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 272/270 Degrees advertised duration. 11.20mm/10.60mm lift

Specifications

Engine Make: Engine Model: Part Number:
TOYOTA 1UZ-VVTI 208-C
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.35mm Set COLD at the CAM

Cam Lift:   Intake: 11.45mm Exhaust: 10.95mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 11.20mm Exhaust: 10.60mm
Advertised Duration @ 0.10mm Intake: 272 Exhaust: 270
Duration @ 1.00mm VALVE LIFT Intake: 240 Exhaust: 236
Timing @ 1.00mm VALVE LIFT IVO: 34 BTDC EVO: 44 BBDC
    IVC: 26 ABDC EVC: 12 ATDC
Suggested Centre Lines:   Intake: 86 Exhaust: 106
Lift @ TDC Intake: Exhaust:



compatibility

  • 1989-2000 Lexus LS 400/Toyota Celsior
  • 1989-2002 Toyota Crown/Toyota Crown Majesta
  • 1989-2004 Toyota HiAce HiMedic Ambulance (Japan only)
  • 1991-2000 Lexus SC 400/Toyota Soarer
  • 1992-2000 Lexus GS 400/Toyota Aristo
  • 1995-1997 SARD MC8/MC8-R

SKU kelford-208-C
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
