Kelford Cams 207-A Camshaft Set for (1UZ-FE) - 268/274 Deg
KELFORD CAMS
Description

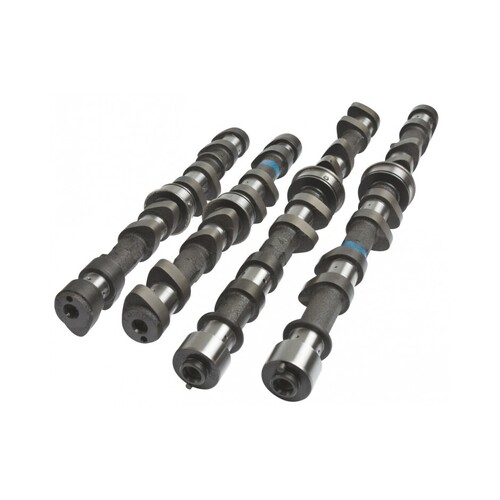

item: Kelford Cams 207-A Camshaft Set for (1UZ-FE) - 268/274 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 268/274 Degrees advertised duration. 8.12mm/8.00mm lift
- Mild road cam (Genuine Capri GT specification).
Specifications
Engine Make: | Engine Model: | Part Number: | |||||
TOYOTA | Lexus 1UZ-FE | 207-A | |||||
Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
Exhaust: | 0.30mm | Set | COLD | at the | CAM | ||
Cam Lift: | Intake: | 8.37mm | Exhaust: | 8.30mm | |||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
Nett Valve Lift: | Intake: | 8.12mm | Exhaust: | 8.00mm | |||
Advertised Duration @ | 0.10mm | Intake: | 268 | Exhaust: | 274 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 206 | Exhaust: | 222 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 6 ATDC | EVO: | 42 BBDC | ||
IVC: | 32 ABDC | EVC: | 0 TDC | ||||
Suggested Centre Lines: | Intake: | 109 | Exhaust: | 111 | |||
VALVE | Lift @ TDC | Intake: | 0.54mm | Exhaust: | 0.93 |
compatibility
- 1989-2000 Lexus LS 400/Toyota Celsior
- 1989-2002 Toyota Crown/Toyota Crown Majesta
- 1989-2004 Toyota HiAce HiMedic Ambulance (Japan only)
- 1991-2000 Lexus SC 400/Toyota Soarer
- 1992-2000 Lexus GS 400/Toyota Aristo
- 1995-1997 SARD MC8/MC8-R
Specifications
SKU | kelford-207-A |
Brand | KELFORD CAMS |
Shipping Weight | 25.0000kg |
Shipping Width | 0.600m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
