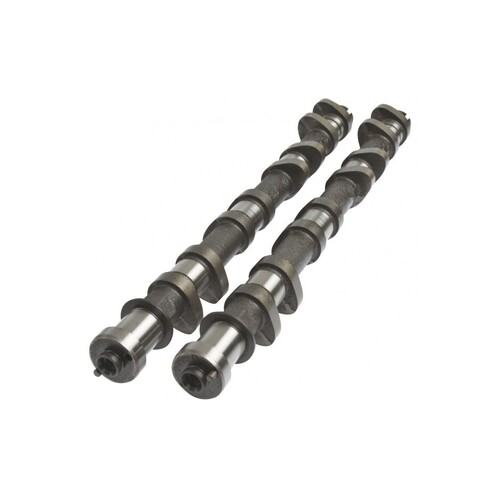

Kelford Cams 2-195-TB Camshaft Set for (3S-GTE Gen 2) - 270/270 Deg
KELFORD CAMS
Description
item: Kelford Cams 2-195-TB Camshaft Set for (3S-GTE Gen 2) - 270/270 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 270/270 Degrees advertised duration. 9.60mm/9.60mm lift
- 3S-GTE Turbo cams for serious street performance engines with 400HP turbo.
Specifications
| Engine Make: | Engine Model: | Part Number: | |||||
| TOYOTA | 3S-GE (Gen 2) | 2-195-TB | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.30mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 9.85mm | Exhaust: | 9.90mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 9.60mm | Exhaust: | 9.60mm | |||
| Advertised Duration @ | 0.30mm | Intake: | 270 | Exhaust: | 270 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 232 | Exhaust: | 232 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 8 BTDC | EVO: | 52 BBDC | ||
| IVC: | 44 ABDC | EVC: | 0 TDC | ||||
| Suggested Centre Lines: | Intake: | 108 | Exhaust: | 116 | |||
| VALVE | Lift @ TDC | Intake: | 1.80mm | Exhaust: | 0.95 | ||
compatibility
- 1990-1993 Toyota Celica ST185
- 1990-1992 Toyota MR2 Turbo
- 1991-1995 Toyota MR2 (North America)
Specifications
| SKU | kelford-2-195-TB |
| Brand | KELFORD CAMS |
| Shipping Weight | 25.0000kg |
| Shipping Width | 0.600m |
| Shipping Height | 0.200m |
| Shipping Length | 0.250m |
