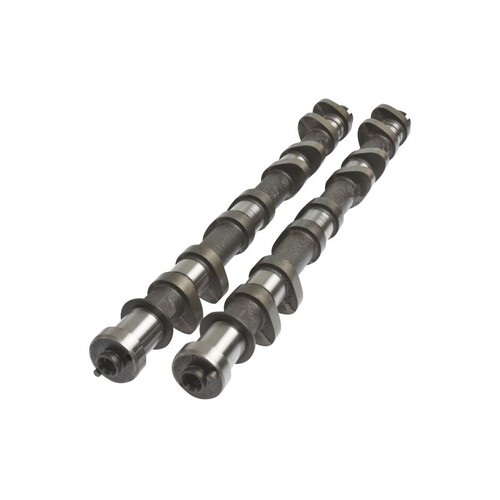

Kelford Cams 2-195-TA Camshaft Set for (3S-GTE Gen 2) - 258/258 Deg
Kelford Cams 2-195-TA Camshaft Set for (3S-GTE Gen 2) - 258/258 Deg
SKU: kelford-2-195-TA

Kelford Cams 2-195-TA Camshaft Set for (3S-GTE Gen 2) - 258/258 Deg

KELFORD CAMS

$1,056.43

or 4 payments of $264.11 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 2-195-TA Camshaft Set for (3S-GTE Gen 2) - 258/258 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 258/258 Degrees advertised duration. 9.30mm/9.30mm lift
  • 3S-GTE Turbo cams for serious street performance. Turbo and ECU upgrade required.

Specifications

Engine Make: Engine Model: Part Number:
TOYOTA 3S-GE (Gen 2) 2-195-TA
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 9.55mm Exhaust: 9.60mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.30mm Exhaust: 9.30mm
Advertised Duration @ 0.30mm Intake: 258 Exhaust: 258
Duration @ 1.00mm VALVE LIFT Intake: 222 Exhaust: 222
Timing @ 1.00mm VALVE LIFT IVO: 1 BTDC EVO: 43 BBDC
    IVC: 41 ABDC EVC: 1 BTDC
Suggested Centre Lines:   Intake: 110 Exhaust: 112
VALVE Lift @ TDC Intake: 1.13mm Exhaust: 0.85



compatibility

  • 1990-1993 Toyota Celica ST185
  • 1990-1992 Toyota MR2 Turbo
  • 1991-1995 Toyota MR2 (North America)

SKU kelford-2-195-TA
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
