Kelford Cams 194-D Camshaft Set for (4A-GE) - 290/284 Deg
KELFORD CAMS
Description

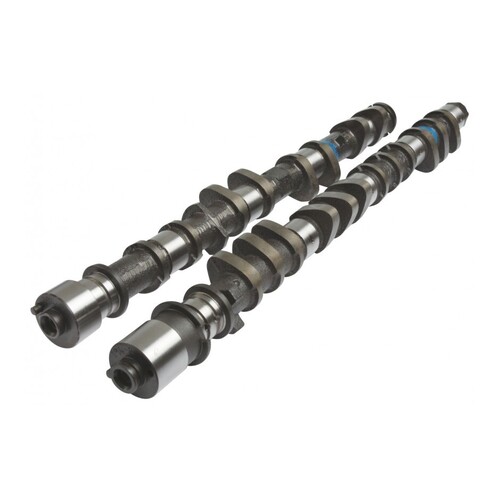

item: Kelford Cams 194-D Camshaft Set for (4A-GE) - 290/284 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 290/284 Degrees advertised duration. 10.00mm/9.95mm lift
- Racing cam to suit well developed Hemi 6. Suits 12:1+ compression, triple carbs and CHI head. Must use solid lifters.
Specifications
Engine Make: | Engine Model: | Part Number: | |||||
TOYOTA | 4A-GE, 20 VALVE | 194-D | |||||
Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
Exhaust: | 0.30mm | Set | COLD | at the | CAM | ||
Cam Lift: | Intake: | 10.25mm | Exhaust: | 10.25mm | |||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
Nett Valve Lift: | Intake: | 10.00mm | Exhaust: | 9.95mm | |||
Advertised Duration @ | 0.10mm | Intake: | 290 | Exhaust: | 284 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 250 | Exhaust: | 248 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 23 BTDC | EVO: | 49 BBDC | ||
IVC: | 47 ABDC | EVC: | 19 ATDC | ||||
Suggested Centre Lines: | Intake: | 102 | Exhaust: | 105 | |||
VALVE | Lift @ TDC | Intake: | 3.16mm | Exhaust: | 2.74 |
compatibility
- 1991-1995 Toyota Corolla Levin coupe AE101 (Japan only)
- 1991-1995 Toyota Sprinter Trueno coupe AE101 (Japan only)
- 1992-1995 Toyota Corolla Ceres hardtop AE101 (Japan only)
- 1992-1995 Toyota Sprinter Marino hardtop AE101 (Japan only)
- 1996-2001 Toyota Carina AT210 (Japan only)
- 1991-2000 Toyota Corolla AE101 (Japan only)
- 1991-2000 Toyota Sprinter AE101 (Japan only)
- 1995-2000 Toyota Corolla Levin coupe AE111 (Japan only)
- 1995-2000 Toyota Sprinter Trueno coupe AE111 (Japan only)
- 1995-1998 Toyota Corolla Ceres hardtop AE101 (Japan only)
- 1995-1998 Toyota Sprinter Marino hardtop AE101 (Japan only)
- 1995-1999 Toyota Corolla BZ touring wagon AE101G (Japan)
- 1995-2000 Toyota Corolla AE111 (Japan only)
- 1995-1999 Toyota Sprinter AE111 (Japan only)
- 1997-2000 Toyota Sprinter Carib AE111 (Japan only)
- 1997-2002 Toyota Corolla RSi and RXi AE111 (South Africa)
- 1996-2001 Toyota Carina AT210 (Japan only)
Specifications
SKU | kelford-194-D |
Brand | KELFORD CAMS |
Shipping Weight | 25.0000kg |
Shipping Width | 0.600m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
