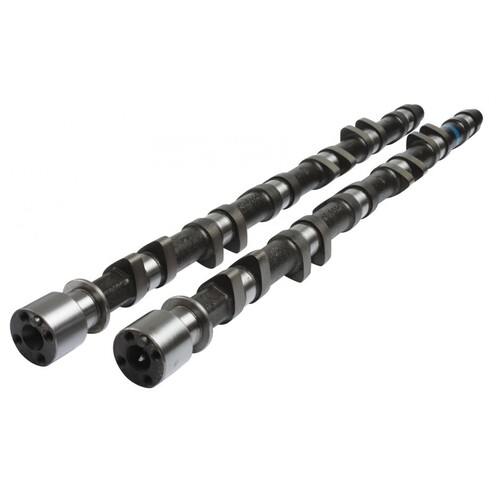

Kelford Cams 182-SG Camshaft Set With Split Lobe Design for (RB26DETT) - 292, 288/300 Deg
Kelford Cams 182-SG Camshaft Set With Split Lobe Design for (RB26DETT) - 292, 288/300 Deg
SKU: kelford-182-SG

Kelford Cams 182-SG Camshaft Set With Split Lobe Design for (RB26DETT) - 292, 288/300 Deg

KELFORD CAMS

$1,210.00

or 4 payments of $302.50 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 182-SG Camshaft Set With Split Lobe Design for (RB26DETT) - 292, 288/300 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 292&288/300 Degrees advertised duration, 11.10mm&11.10mm/11.10mm lift
  • 290 degree camshafts to suit high boost, high rpm Drag racing engines. Must be run with fixed timing, not suitable in variable situations.

Specifications

Engine Make: Engine Model: Part Number:
NISSAN RB26DETT 182-SG
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 11.35mm Exhaust: 11.40mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 11.10mm Exhaust: 11.10mm
Advertised Duration @ 0.35mm Intake: 292 Exhaust: 300
Duration @ 1.00mm VALVE LIFT Intake: 254 Exhaust: 260
Timing @ 1.00mm VALVE LIFT IVO: 16 BTDC EVO: 70 BBDC
    IVC: 58 ABDC EVC: 10 ATDC
Suggested Centre Lines:   Intake: 111 Exhaust: 120
VALVE Lift @ TDC Intake: 2.66mm Exhaust: 1.93



compatibility

  • 1989-2002 Nissan Skyline R32-R34 GTR
  • 1996-2001 Nissan Stagea 34

SKU kelford-182-SG
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
