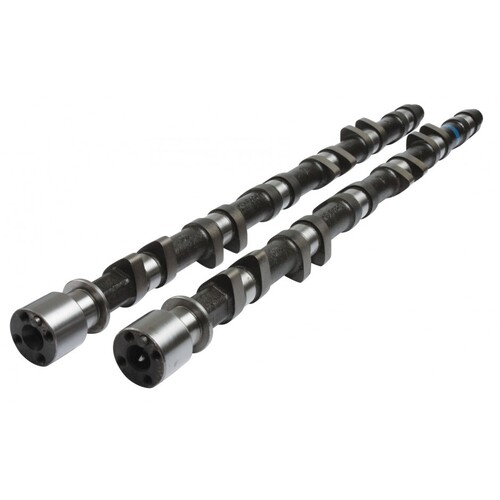

Kelford Cams 182-SE Camshaft Set With Split Lobe Design for (RB26DETT) - 274, 270/280 Deg
Kelford Cams 182-SE Camshaft Set With Split Lobe Design for (RB26DETT) - 274, 270/280 Deg
SKU: kelford-182-SE

Kelford Cams 182-SE Camshaft Set With Split Lobe Design for (RB26DETT) - 274, 270/280 Deg

KELFORD CAMS

$1,300.75

or 4 payments of $325.19 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 182-SE Camshaft Set With Split Lobe Design for (RB26DETT) - 274, 270/280 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 274&270/280 Degrees advertised duration, 10.55mm&10.50mm/10.50mm lift
  • 272/278 Degree racing camshafts. These are our most popular cams for a vast range of motorsport applications. Requires valve spring upgrade, KVS109-1JZ

Specifications

Engine Make: Engine Model: Part Number:
NISSAN RB26DETT 182-SE
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 10.80mm Exhaust: 10.80mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.55mm Exhaust: 10.50mm
Advertised Duration @ 0.35mm Intake: 274 Exhaust: 280
Duration @ 1.00mm VALVE LIFT Intake: 236 Exhaust: 242
Timing @ 1.00mm VALVE LIFT IVO: 8 BTDC EVO: 59 BBDC
    IVC: 48 ABDC EVC: 3 ATDC
Suggested Centre Lines:   Intake: 110 Exhaust: 118
VALVE Lift @ TDC Intake: 1.88mm Exhaust: 1.34



compatibility

  • 1989-2002 Nissan Skyline R32-R34 GTR
  • 1996-2001 Nissan Stagea 34

SKU kelford-182-SE
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
