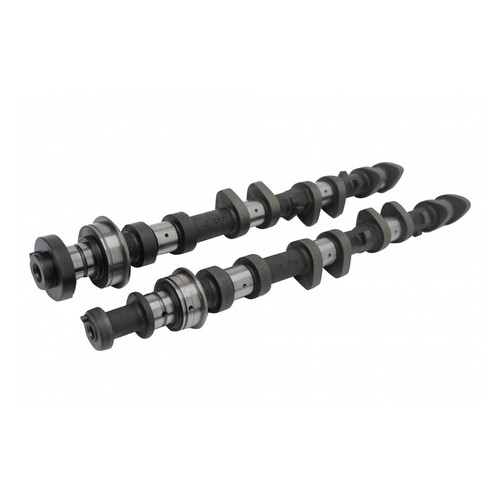

Kelford Cams 180-E Camshaft Set for (2RZ-3rz) - 288/306 Deg
Kelford Cams 180-E Camshaft Set for (2RZ-3rz) - 288/306 Deg
SKU: kelford-180-E

Kelford Cams 180-E Camshaft Set for (2RZ-3rz) - 288/306 Deg

KELFORD CAMS

$1,512.50

or 4 payments of $378.12 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 180-E Camshaft Set for (2RZ-3rz) - 288/306 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 288/306 Degrees advertised duration. 11.55mm/11.60mm lift
  • Drag racing cams to suit high boost engines in the 800-1000 HP range. These cams must use shimless buckets.

Specifications

Engine Make: Engine Model: Part Number:
TOYOTA 2RZ-3RZ 180-E
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 11.80mm Exhaust: 11.85mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 11.55mm Exhaust: 11.60mm
Advertised Duration @ 0.10mm Intake: 288 Exhaust: 306
Duration @ 1.00mm VALVE LIFT Intake: 250 Exhaust: 263
Timing @ 1.00mm VALVE LIFT IVO: 13 BTDC EVO: 69.5 BBDC
    IVC: 57 ABDC EVC: 13.5 ATDC
Suggested Centre Lines:   Intake: 112 Exhaust: 118
VALVE Lift @ TDC Intake: 2.49mm Exhaust: 2.49



compatibility

  • 1998-2004 Toyota Hilux
  • 1996-2000 Toyota 4Runner
  • 1995-2004 Toyota Hilux
  • 1990-2004 Toyota HiAce
  • 2001-2009 Toyota Land Cruiser (Venezuela)
  • 1996-2004 Toyota Land Cruiser Prado

SKU kelford-180-E
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
