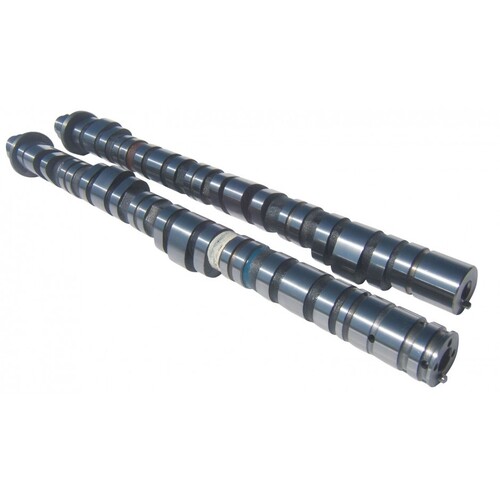

Kelford Cams 179-A Camshaft Set for (K20A/K24A i-VTEC)- 296/292 Deg
KELFORD CAMS
Description
item: Kelford Cams 179-A Camshaft Set for (K20A/K24A i-VTEC)- 296/292 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 296/292 degrees advertised duration. 12.50mm/11.15mm lift
- Stage 1 performance camshaft set to suit near stock TB48 engines. Primary lobe specification is / Degrees advertised duration, lift.
Specifications
Engine Make: | Engine Model: | Part Number: | |||||
HONDA | K20 i-VTEC | 179-A | |||||
Valve Clearance: | Intake: | 0.30mm | Set | HOT | at the | VALVE | |
Exhaust: | 0.30mm | Set | HOT | at the | VALVE | ||
Cam Lift: | Intake: | 7.53mm | Exhaust: | 6.74mm | |||
Rocker Ratio: | Intake: | 1.7 | Exhaust: | 1.7 | |||
Nett Valve Lift: | Intake: | 12.50mm | Exhaust: | 11.15mm | |||
Advertised Duration @ | 0.10mm | Intake: | 296 | Exhaust: | 292 | ||
Duration @ | 1mm VALVE LIFT | Intake: | 258 | Exhaust: | 248 | ||
Timing @ | 1mm VALVE LIFT | IVO: | EVO: | 49 BBDC | |||
IVC: | EVC: | 19 ATDC | |||||
Suggested Centre Lines: | Intake: | VARI | Exhaust: | 105 | |||
VALVE | Lift @ TDC | Intake: | Exhaust: | 2.51 |
compatibility
- 2002-2004 Honda Integra Type R
- 2002-2005 Honda Civic
- 2003-2007 Honda Accord
- 2002-2006 Honda CR-V
- 2003-2008 Honda Odyssey
